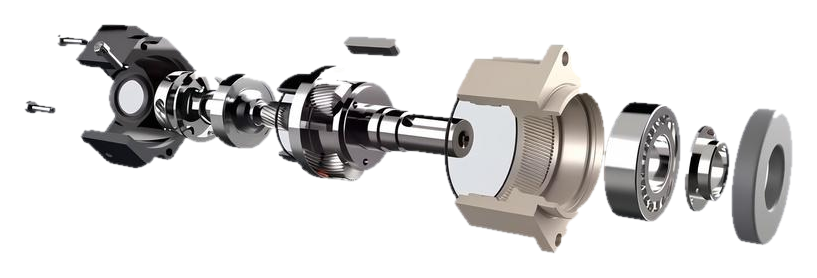

PL-X Precision Planetary
Designed for precision motion applications where low backlash and compact installation matter.
| Ratio Range | 3-100 |
|---|---|
| Rated Torque | 50-1200 Nm |
| Backlash | <=3 arcmin |
| Efficiency | >=96% |
| Replacement For | SEW PLE / Neugart PLE |
Full Range Planetary Gearboxes
Multiple Series. Predictive Service Ready. Built for Reliable Automation.
Product Series
Reference specifications for common planetary gearbox replacement needs. Start from the imported model, then verify torque, ratio, flange, shaft, backlash, and installation interface before switching.
| Series | Ratio Range | Rated Torque (Nm) | Backlash (arcmin) | Efficiency | IP Rating | Replacement For |
|---|---|---|---|---|---|---|
| PL-X Precision Planetary | 3-100 | 50-1200 | <=3 | >=96% | IP65 | SEW PLE / Neugart PLE |
| PH Heavy-Duty Series | 3-100 | 200-5000 | <=5 | >=94% | IP65 | APEX AB / AD |
| PR Right-Angle Planetary | 3-100 | 30-800 | <=6 | >=94% | IP65 | APEX ADS / WPLHE |
Series Details
Compare series positioning, application direction, and available specification data before confirming the replacement path.
PH Heavy-Duty Series
Built for higher torque applications and harsh industrial environments requiring stronger protection.
| Ratio Range | 3-100 |
|---|---|
| Rated Torque | 200-5000 Nm |
| Backlash | <=5 arcmin |
| IP Rating | IP65 |
| Replacement For | APEX AB / AD |
PR Right-Angle Planetary
For compact right-angle installation where space, noise, and replacement compatibility matter.
| Ratio Range | 3-100 |
|---|---|
| Rated Torque | 30-800 Nm |
| Backlash | <=6 arcmin |
| Efficiency | >=94% |
| Replacement For | APEX ADS / WPLHE |
TF High-Torque Series
For high-torque replacement requests where final specifications should be confirmed from approved product data before quotation.
- High torque replacement applications
- Suitable for custom review and CAD comparison
- Final parameters to be confirmed by product data
TE Economy Series
For cost-sensitive replacement projects where final specifications should be confirmed from approved product data before quotation.
- Economy replacement positioning
- Designed for cost-control discussions
- Final parameters to be confirmed by product data
Custom Retrofit Unit
For old imported models, non-standard shafts, flange changes, and emergency retrofit cases.
- Non-standard shaft/flange modification
- 1:1 mapping and replacement for old imported models
- Downtime <48h for emergency retrofits

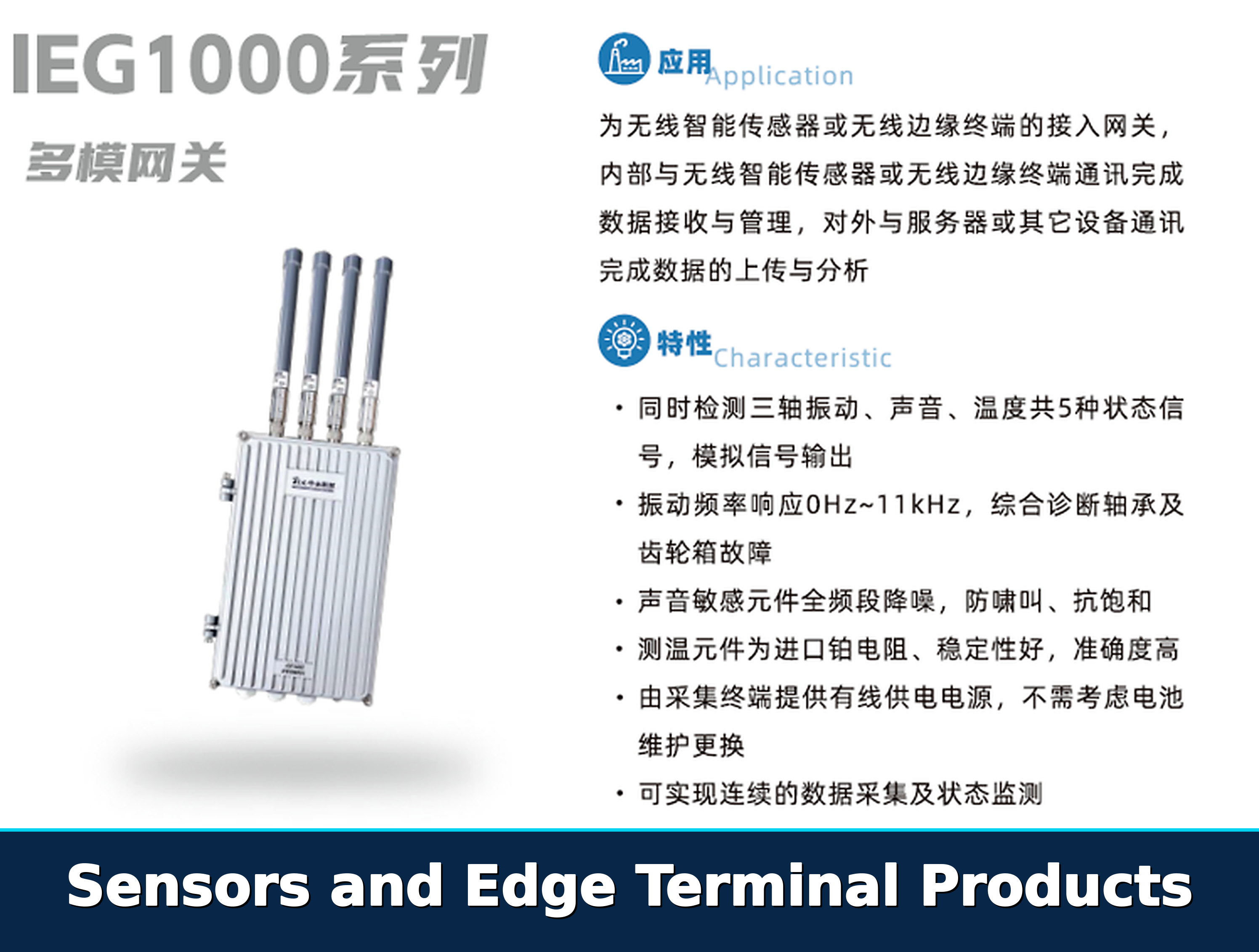

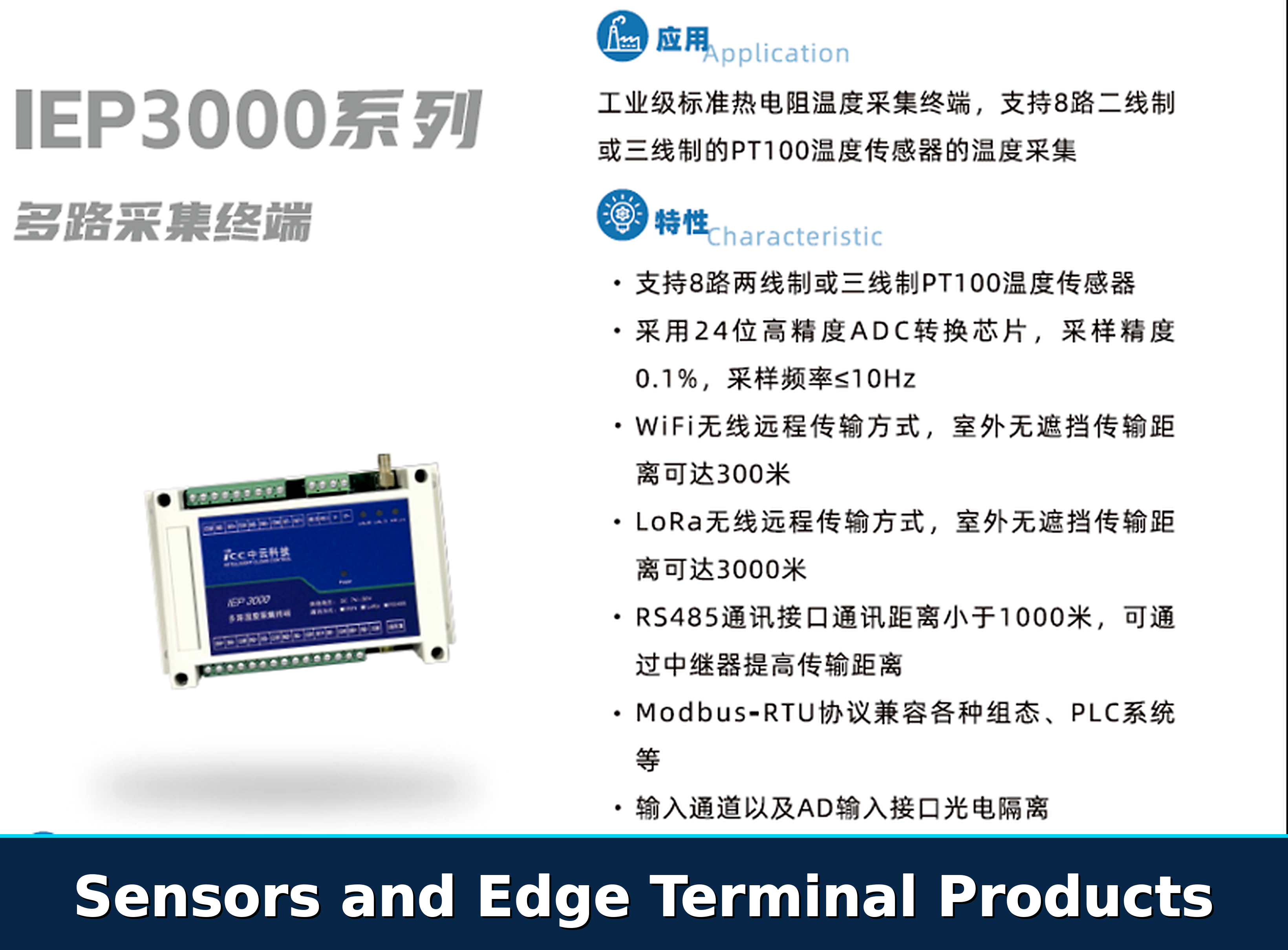

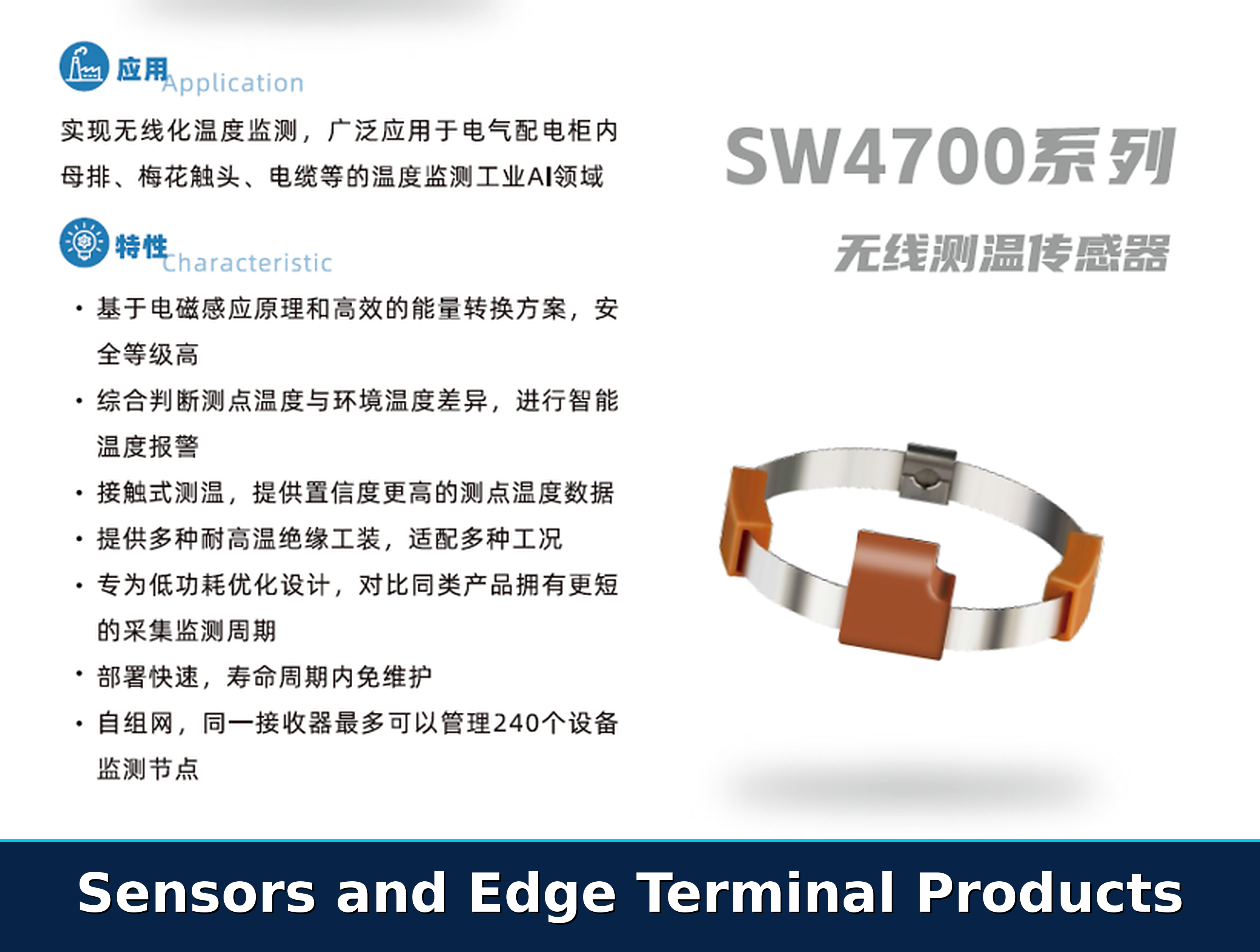

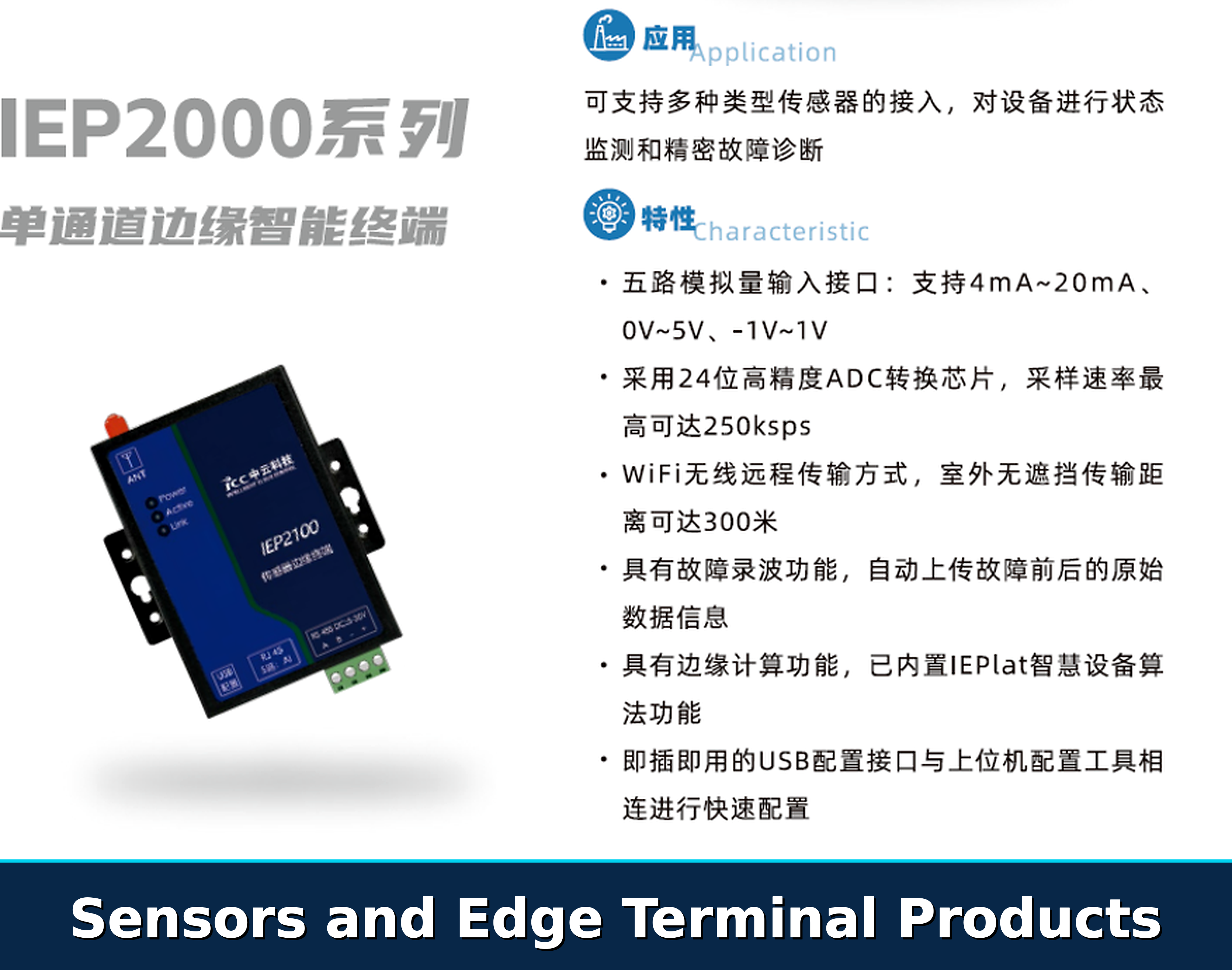

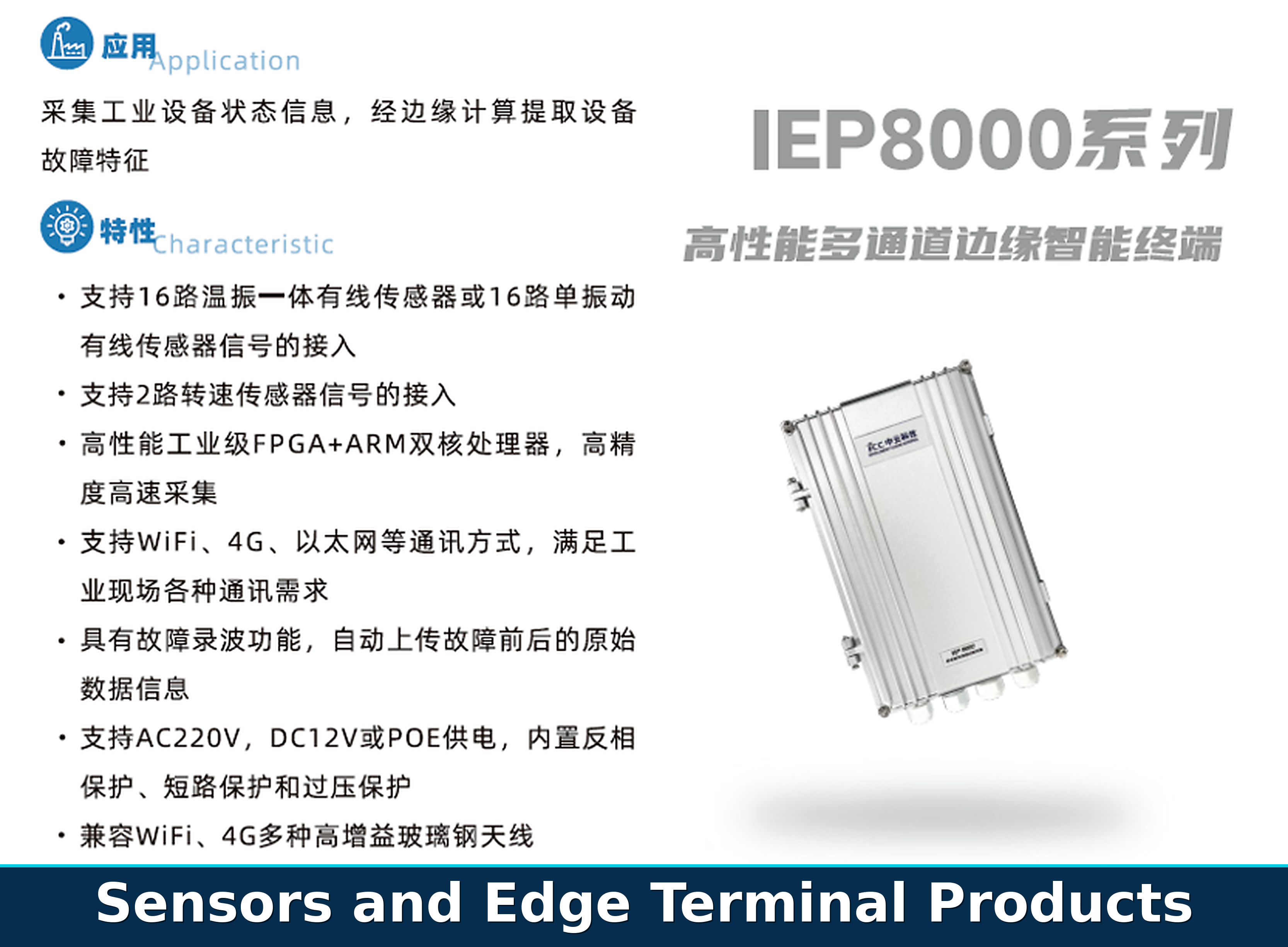

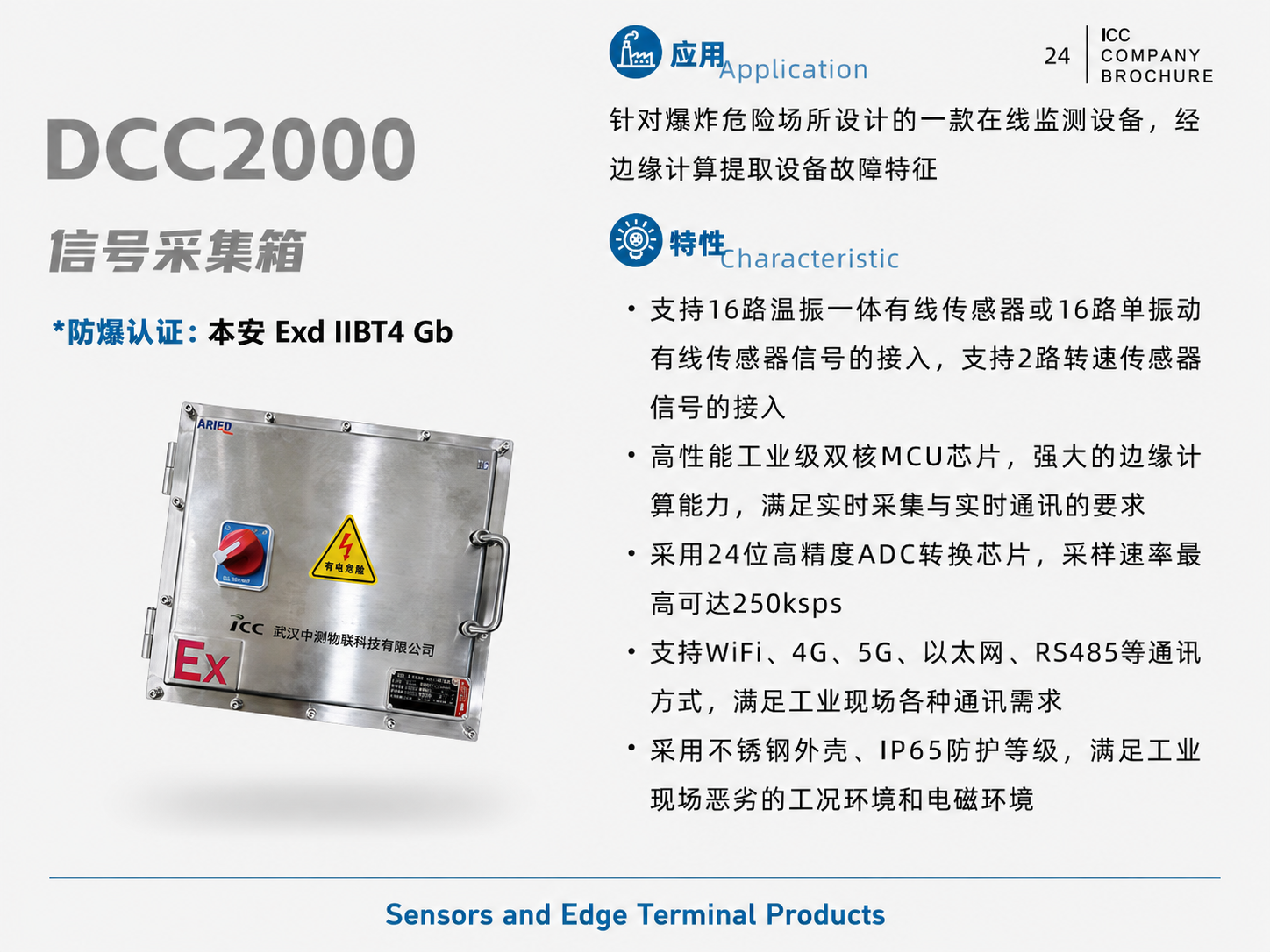

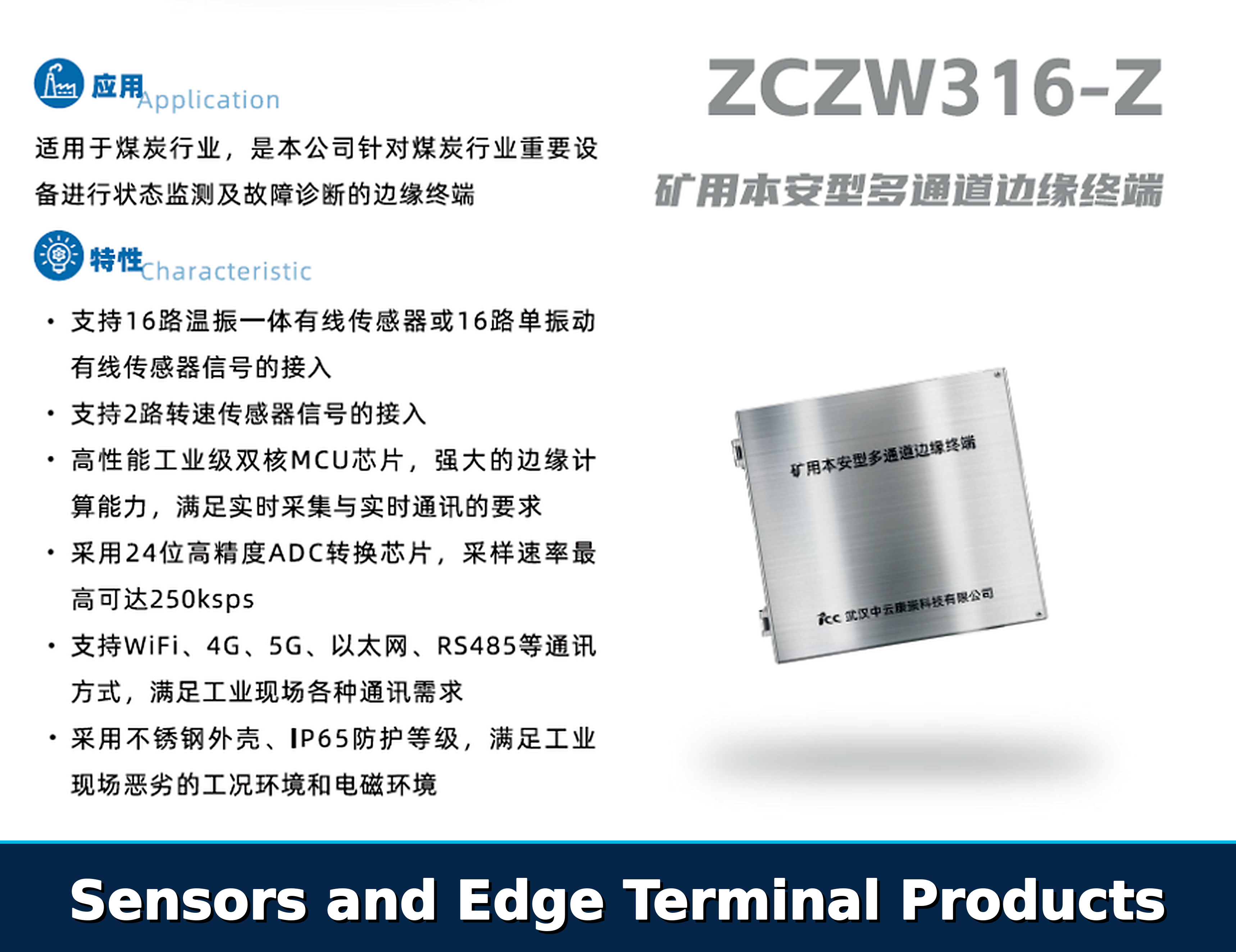

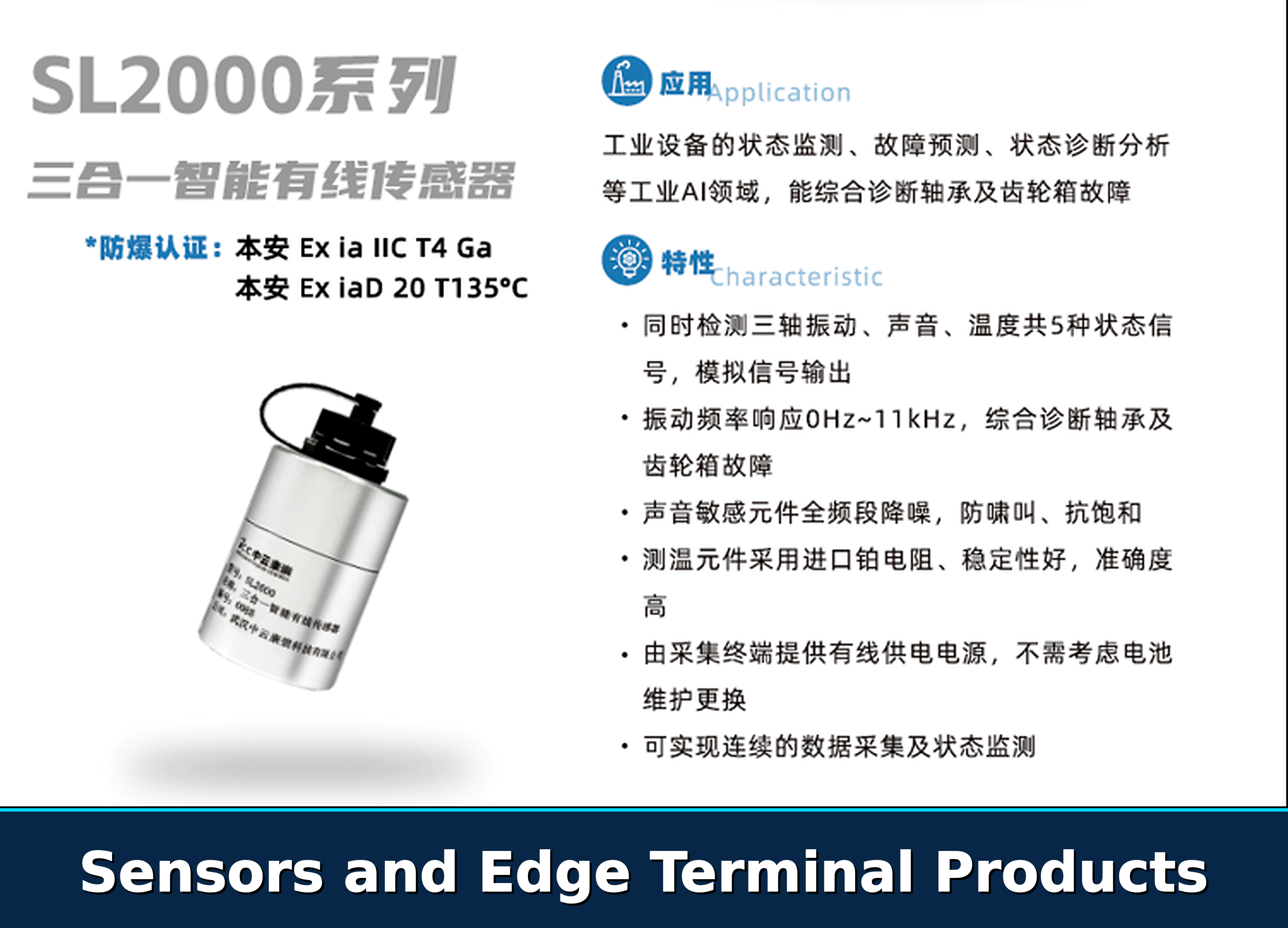

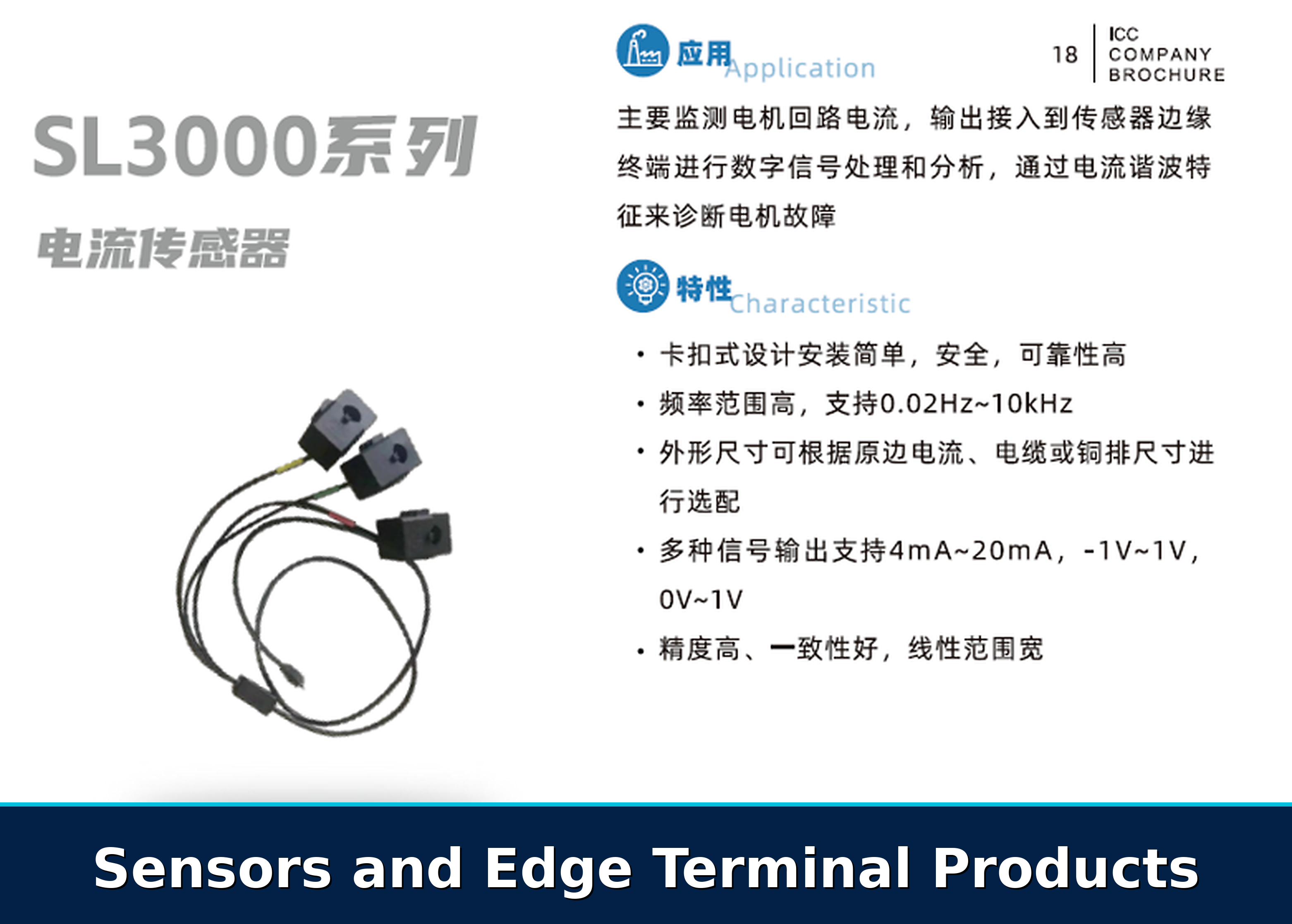

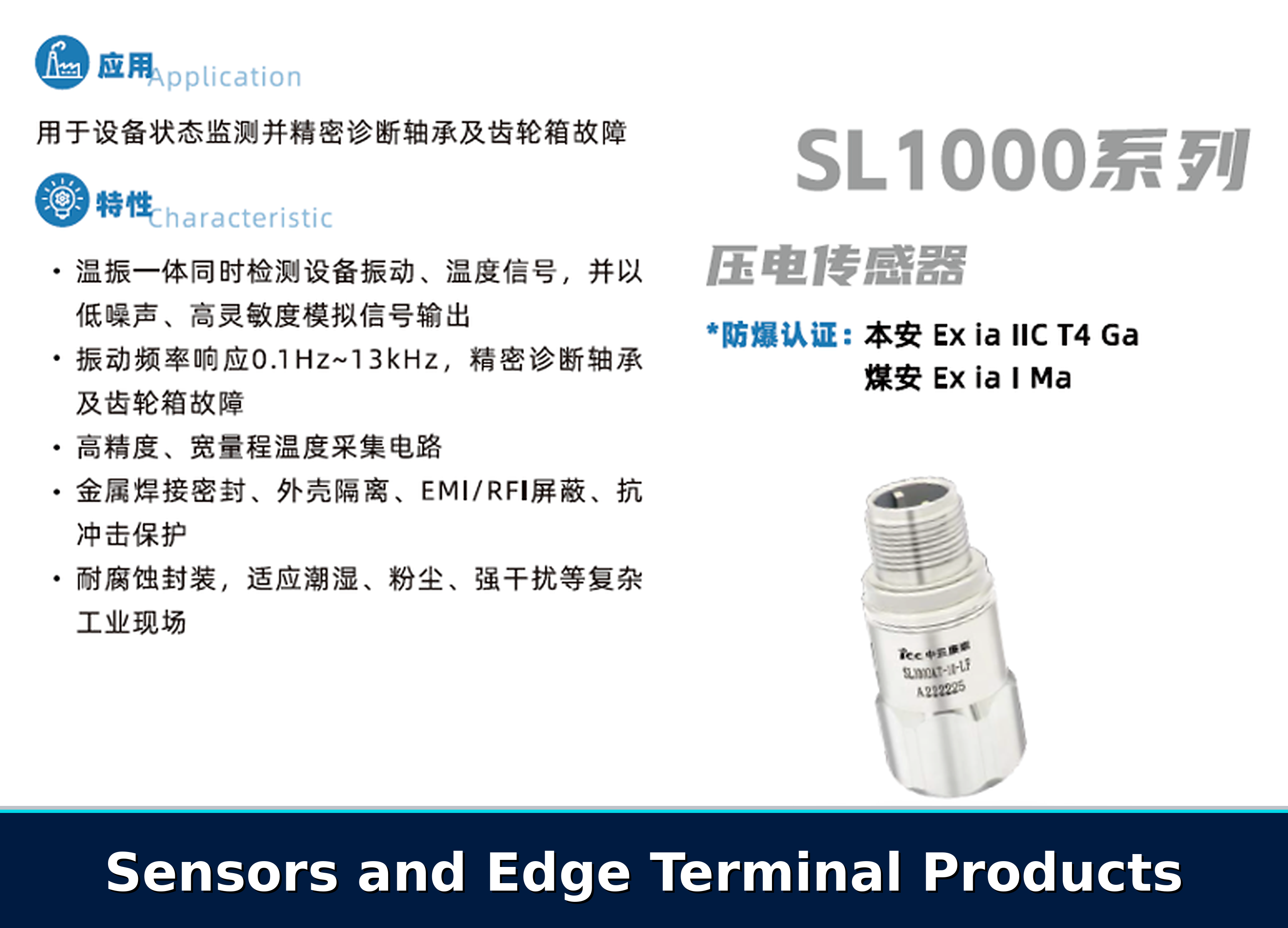

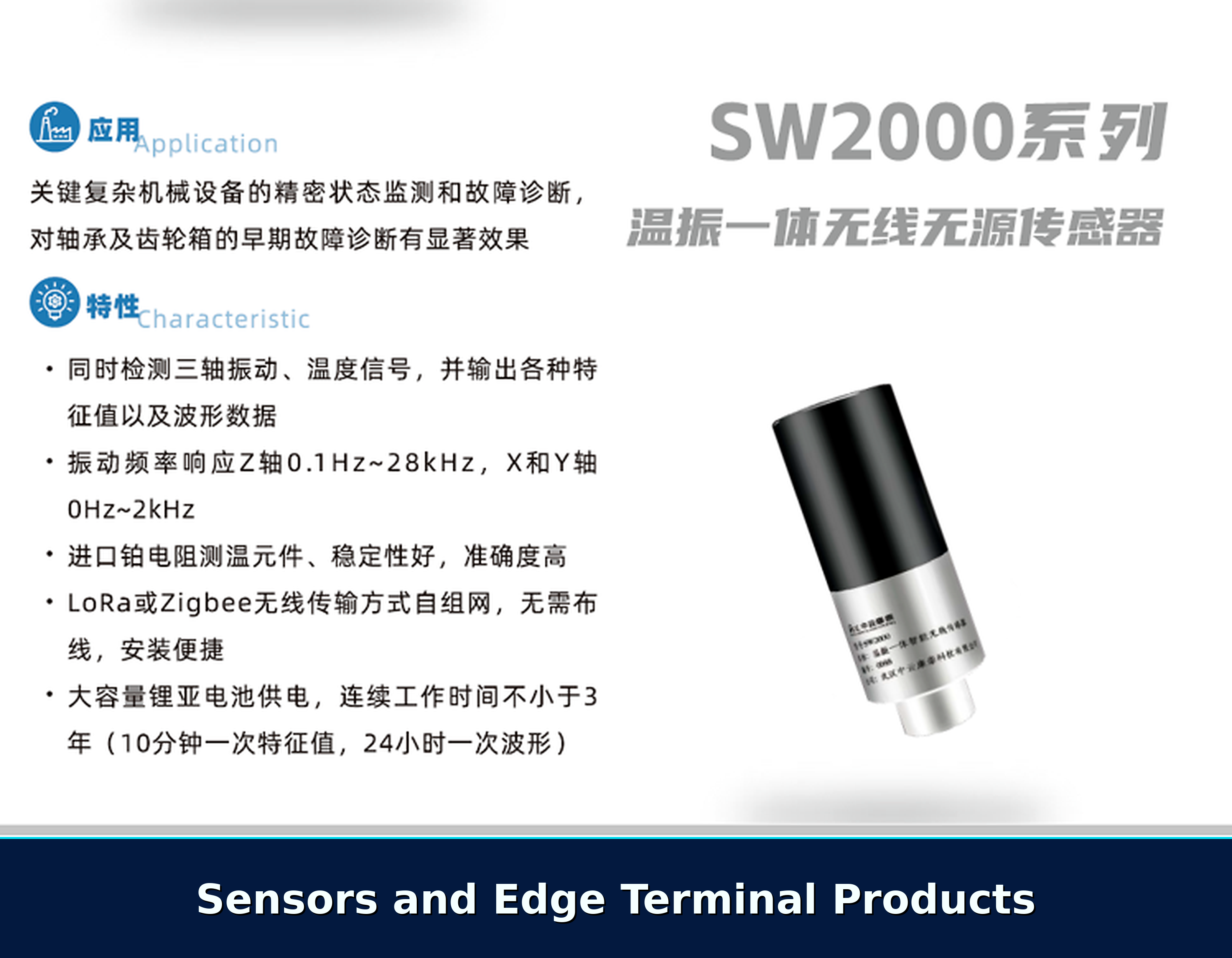

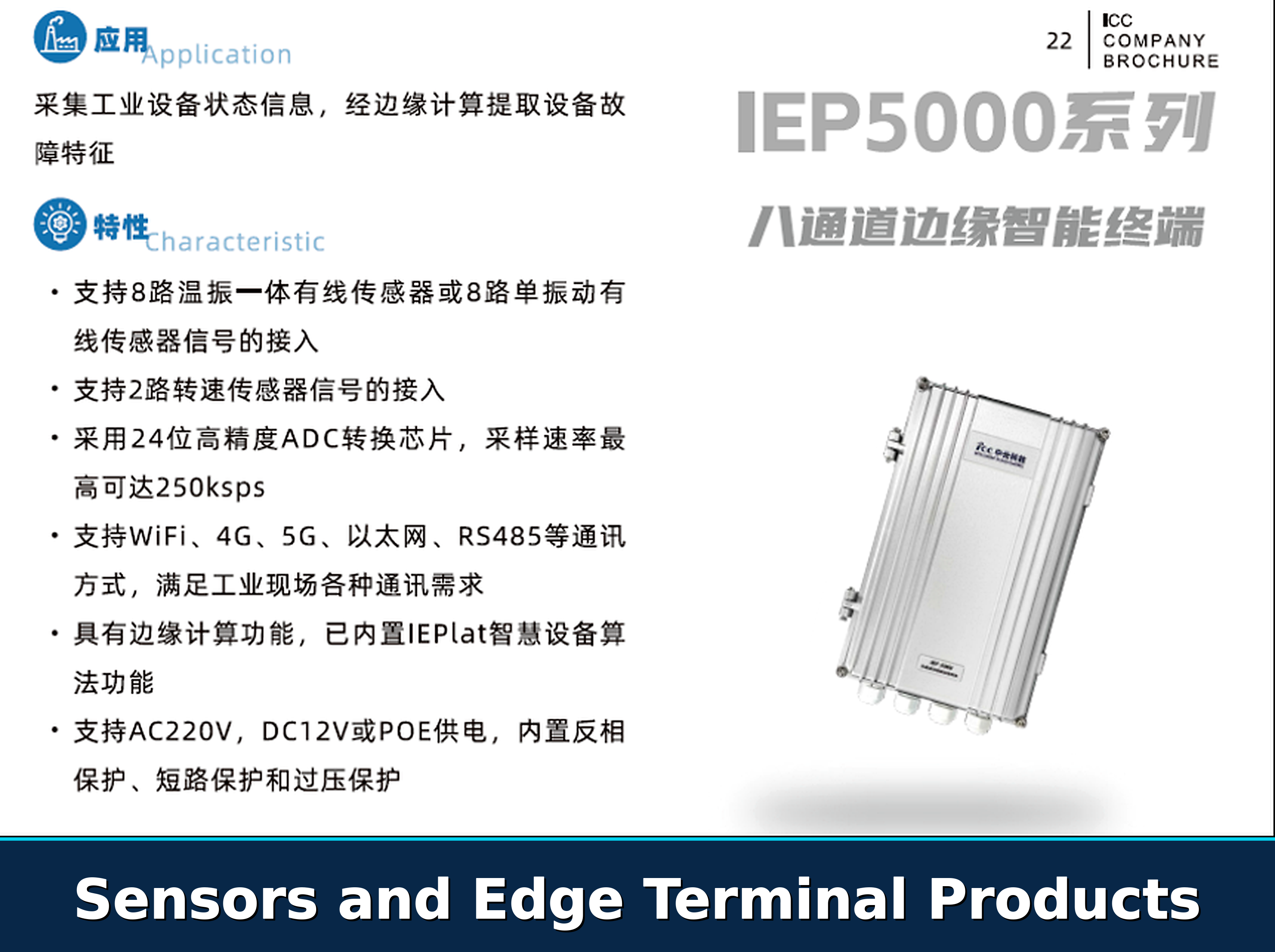

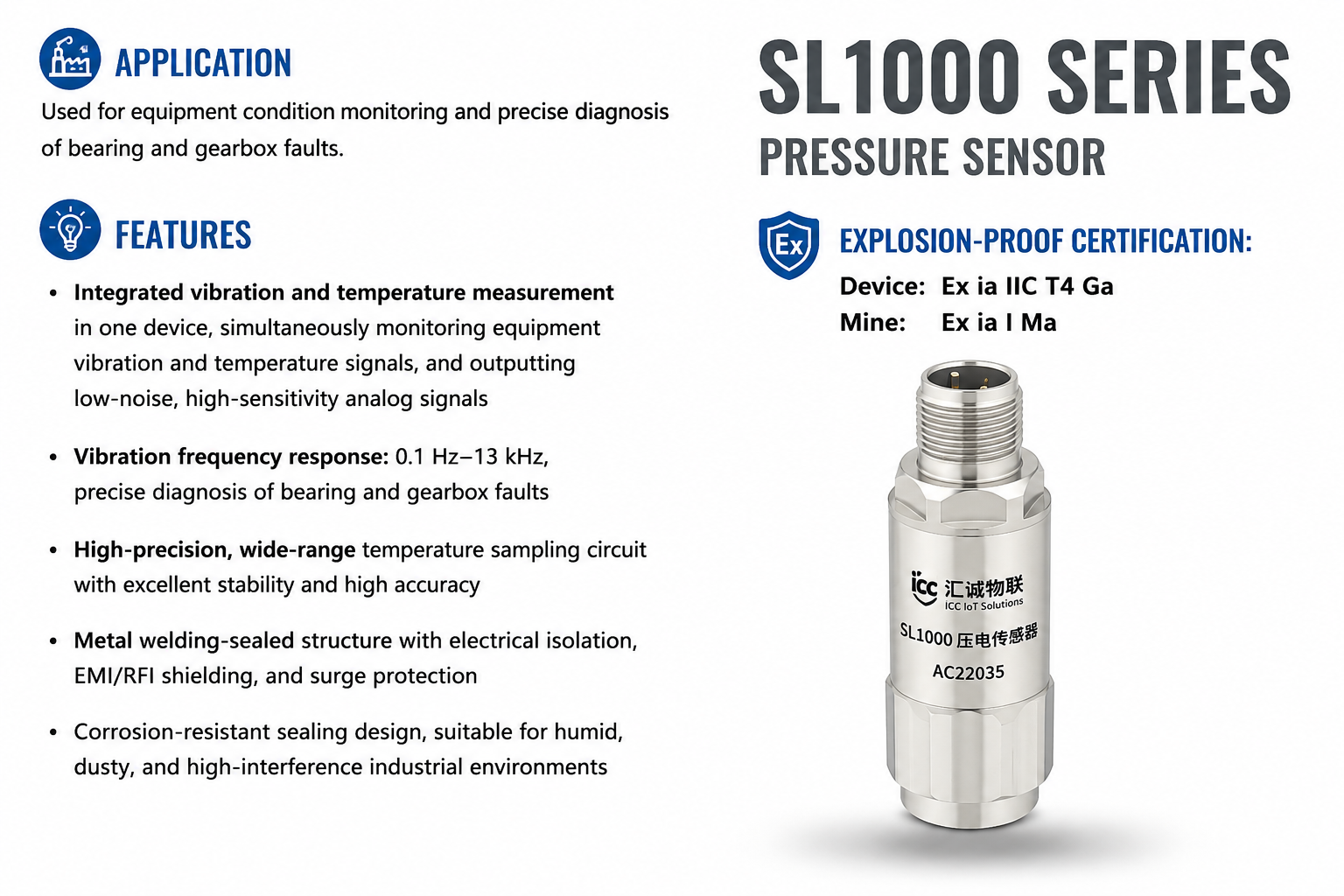

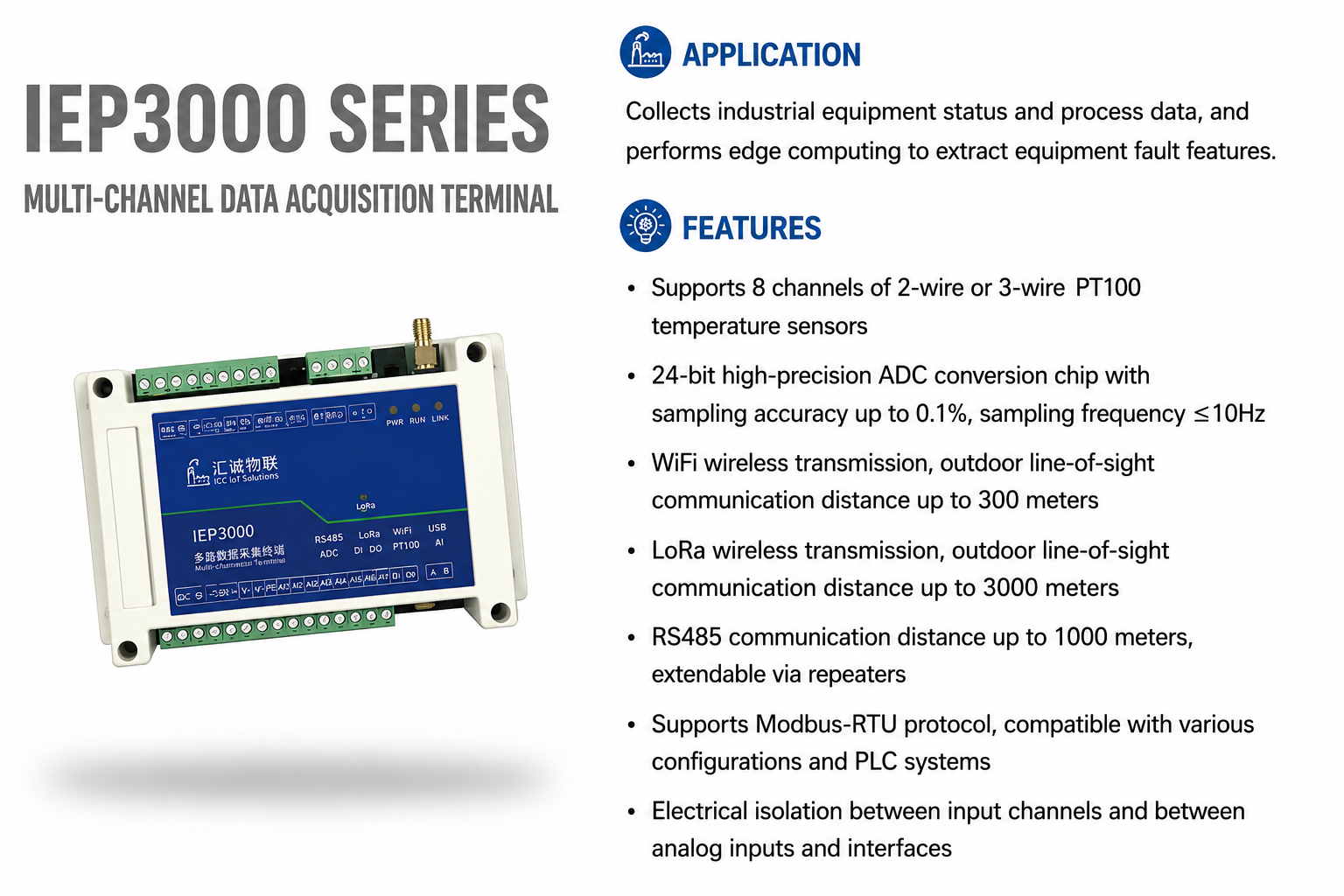

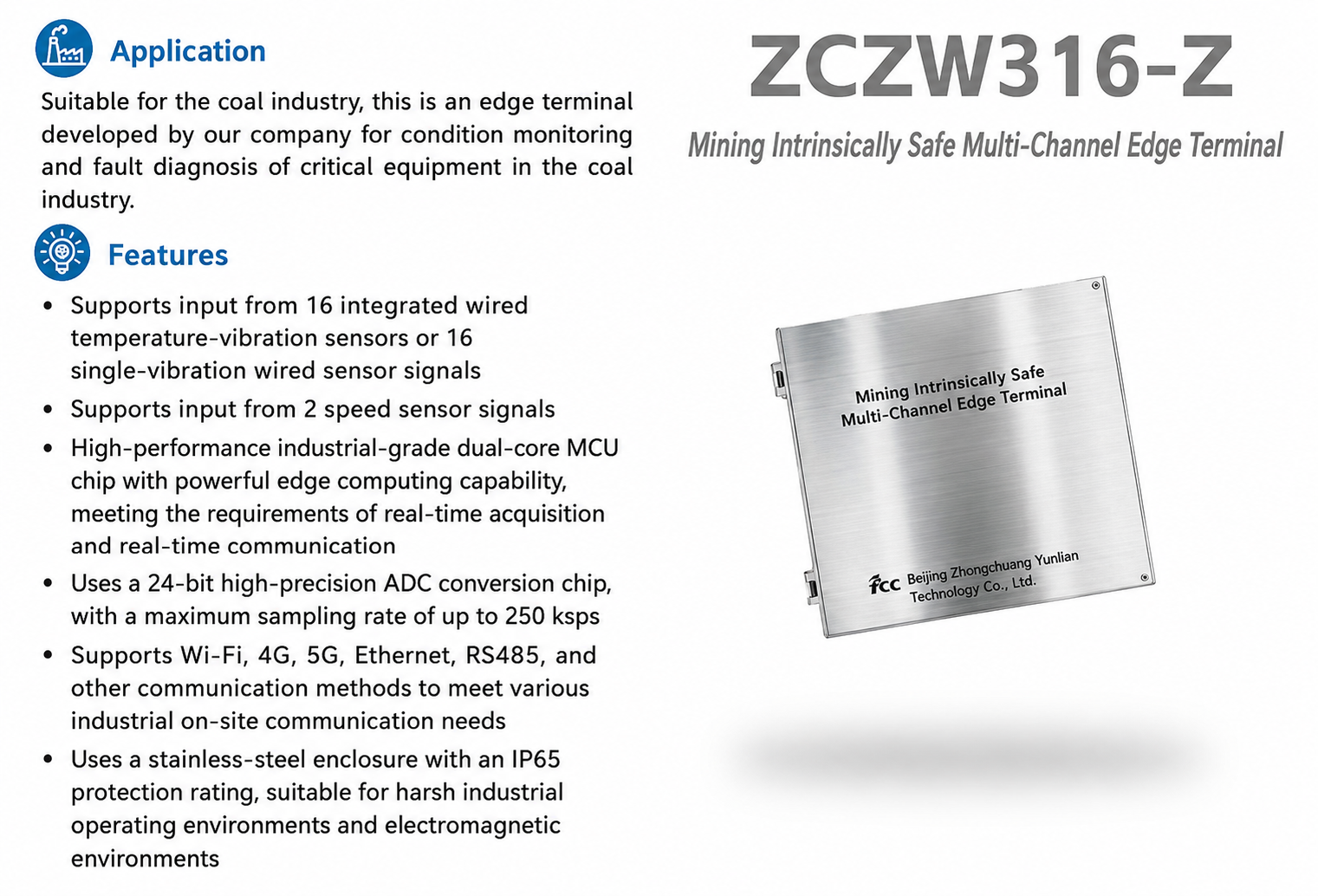

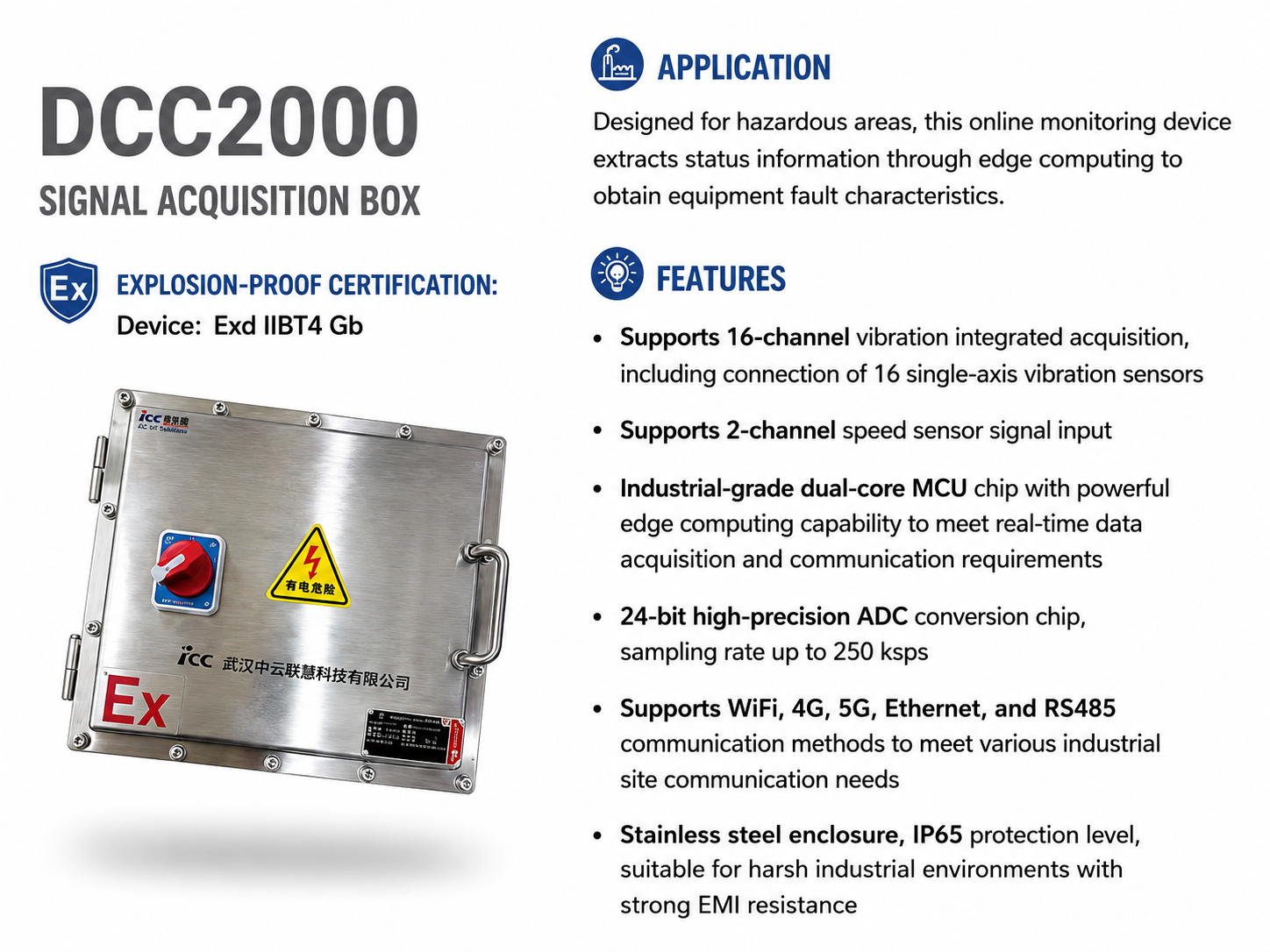

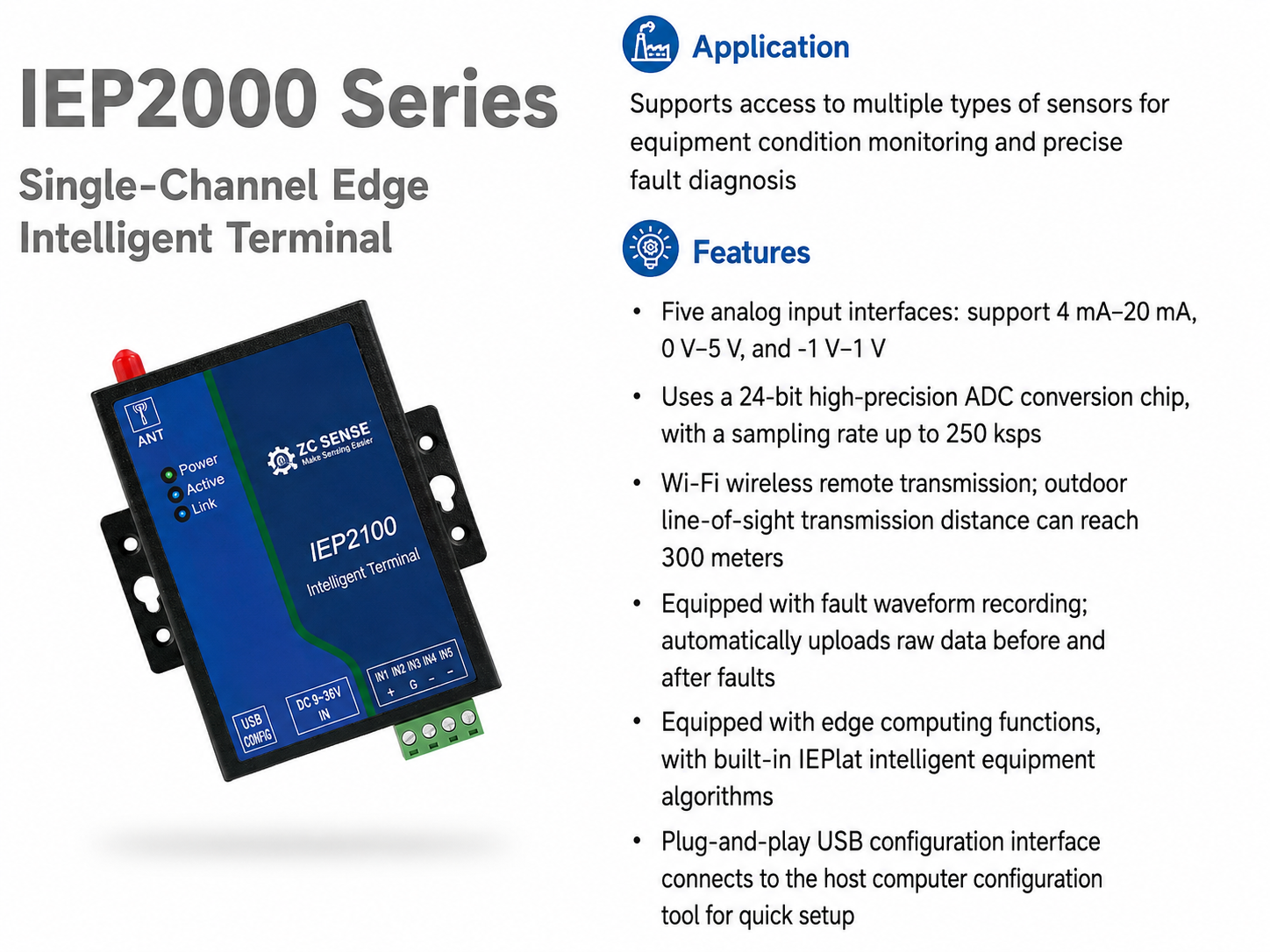

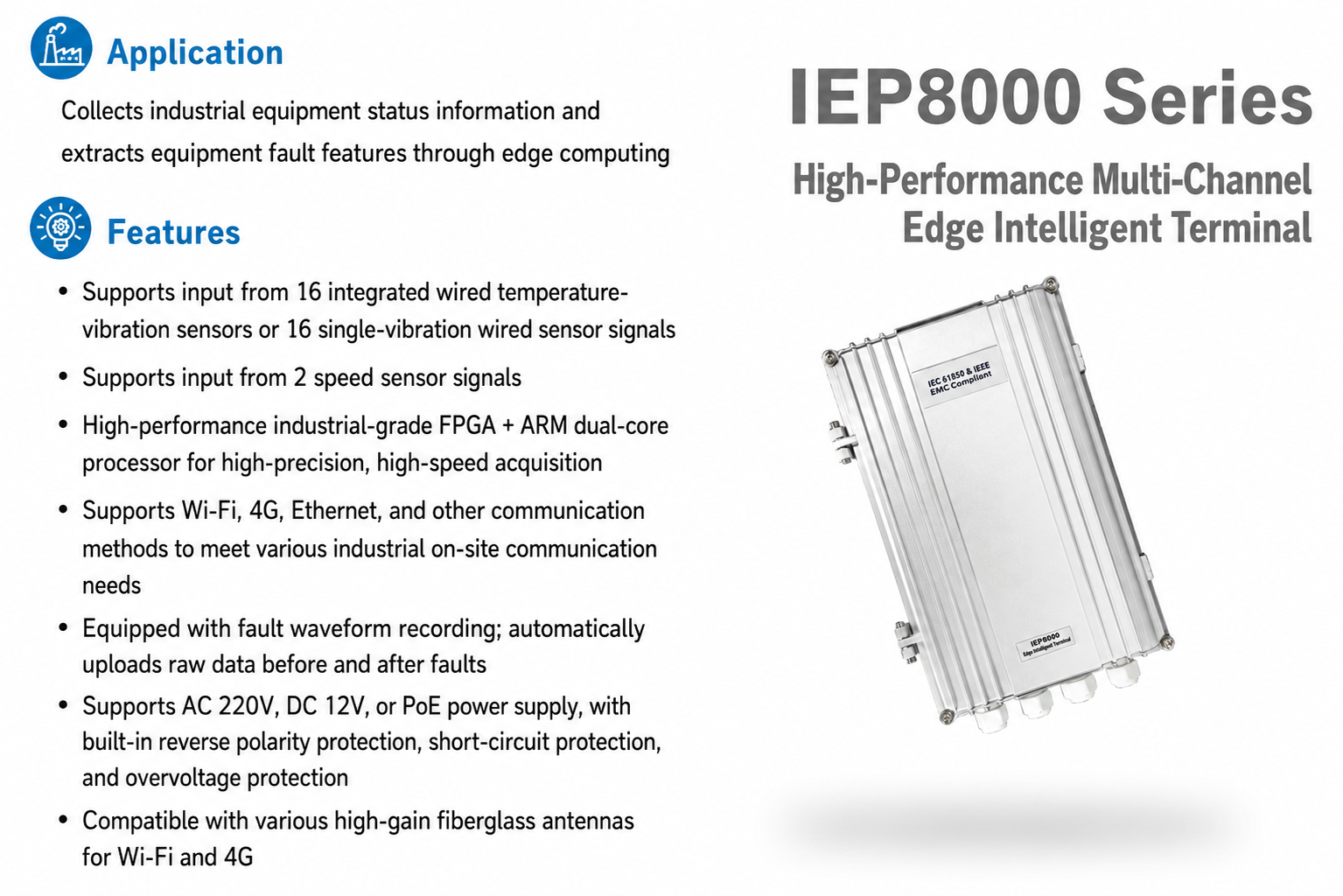

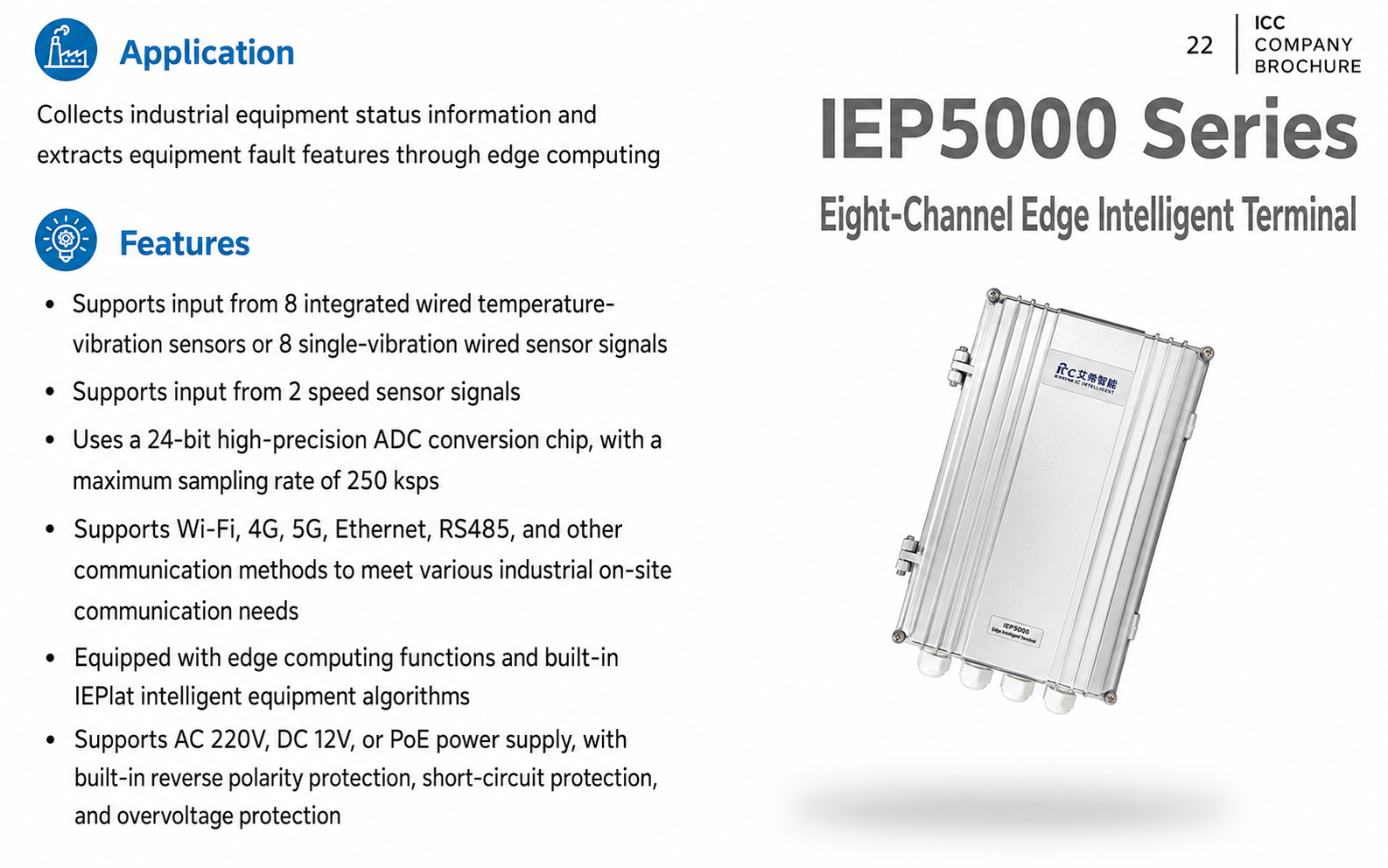

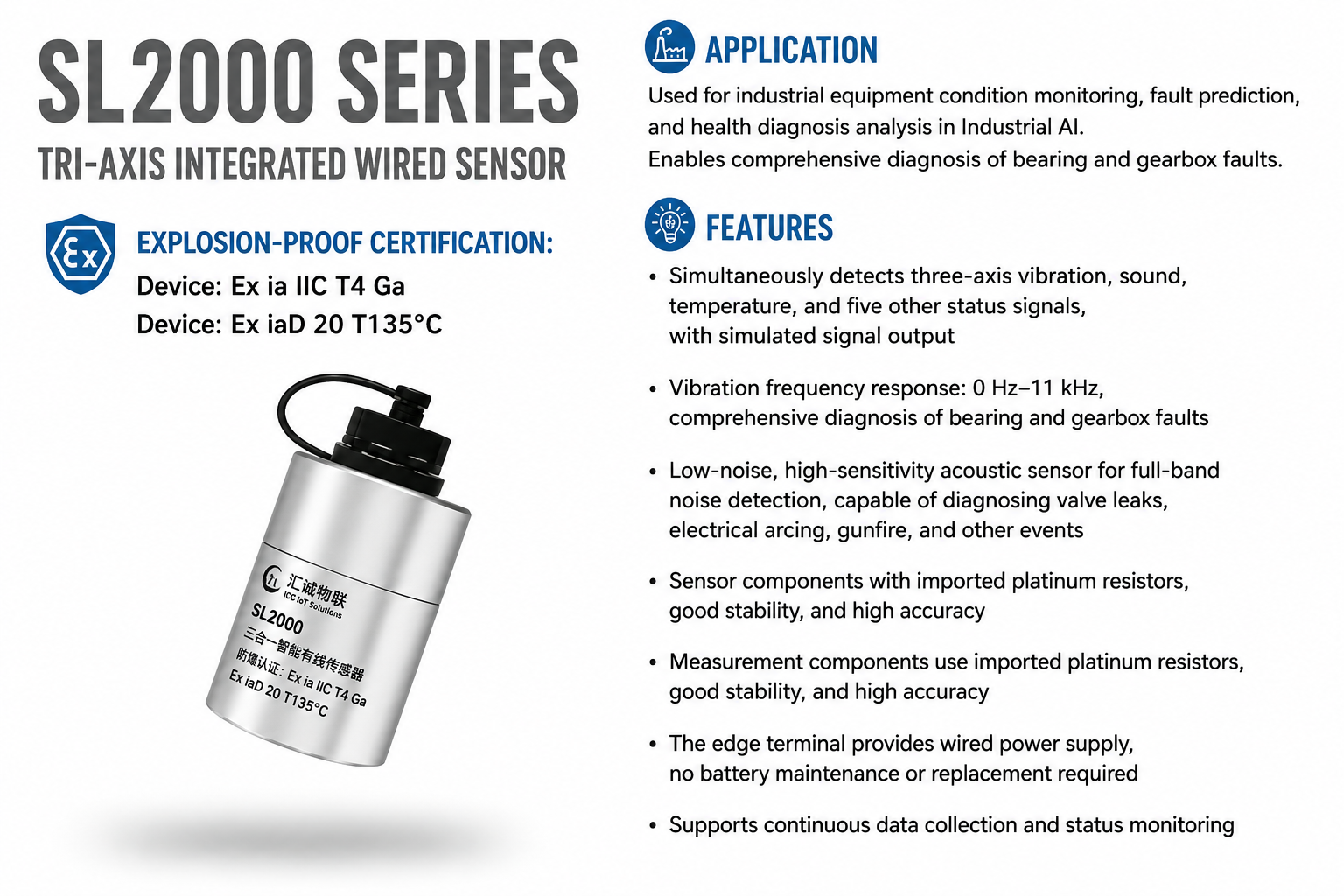

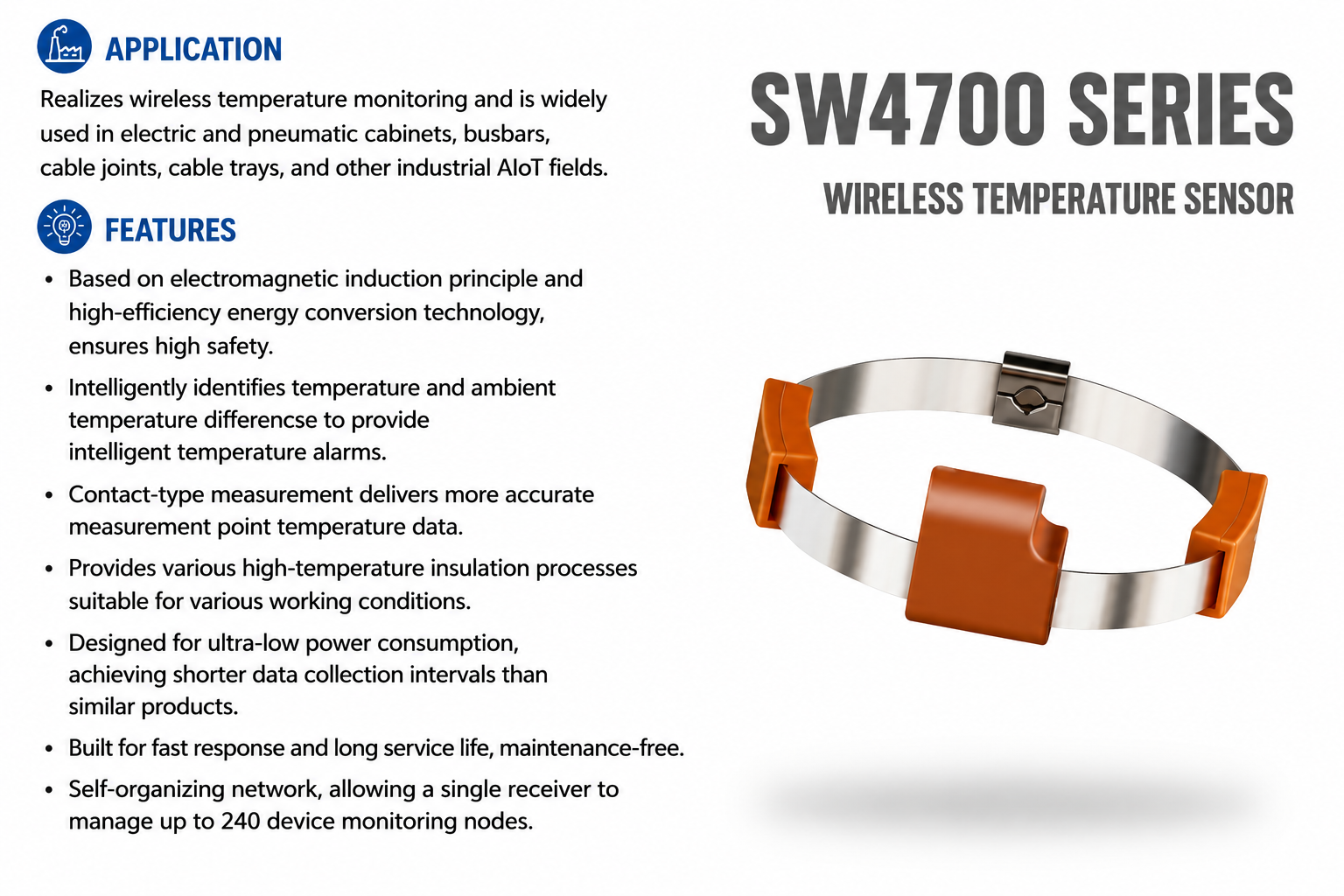

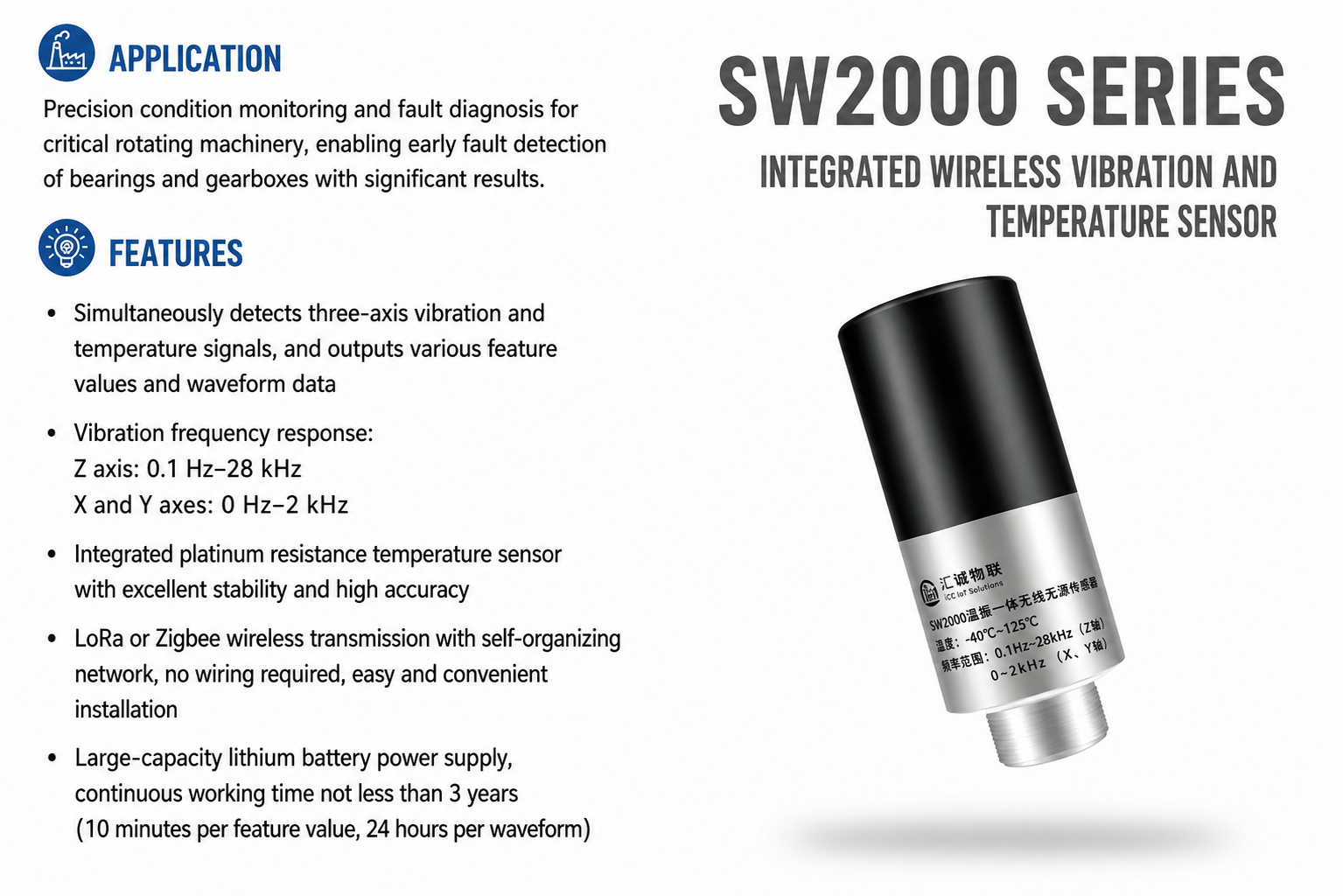

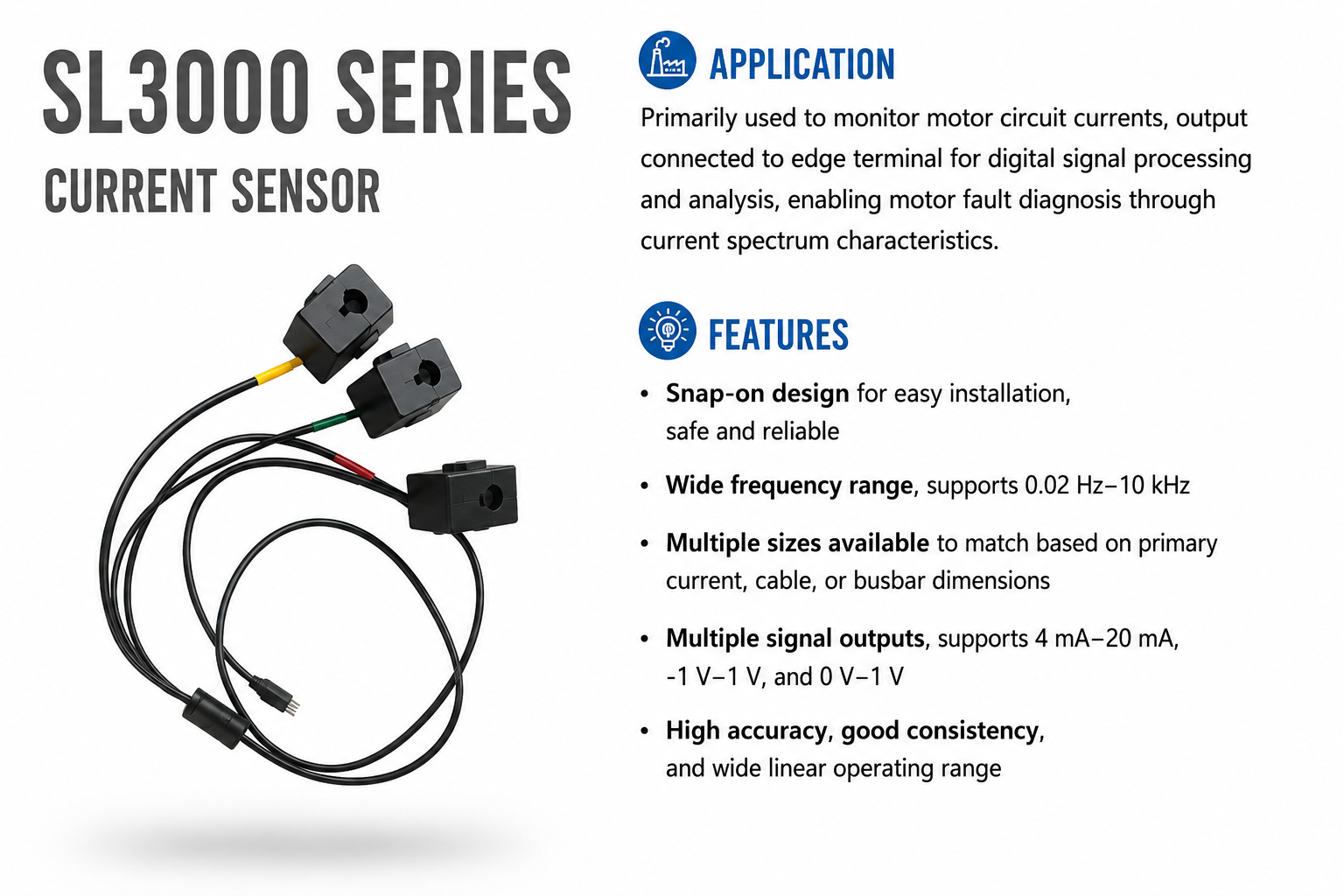

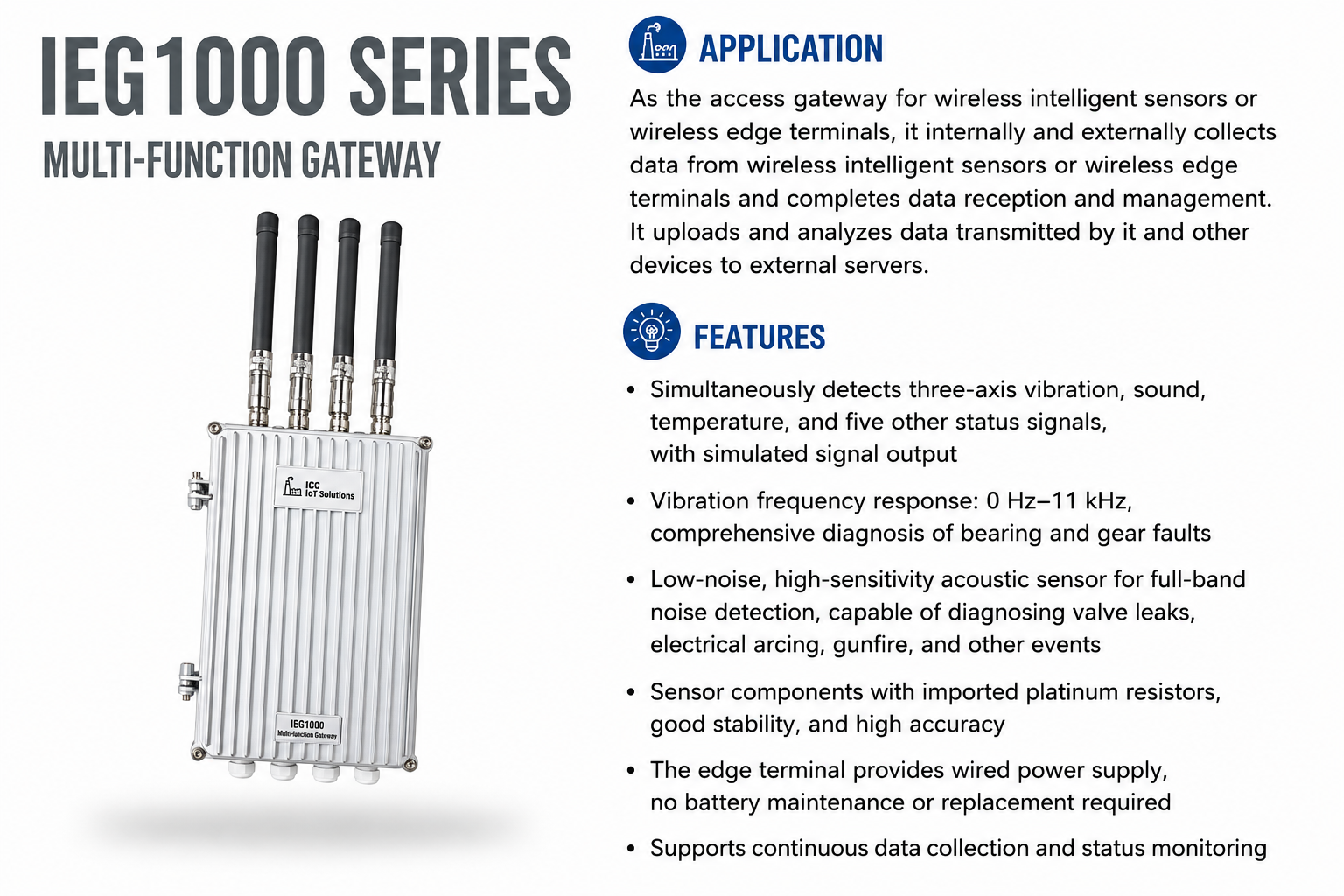

Sensors & Edge Terminals
Hardware for condition monitoring, data acquisition, and remote edge connectivity.

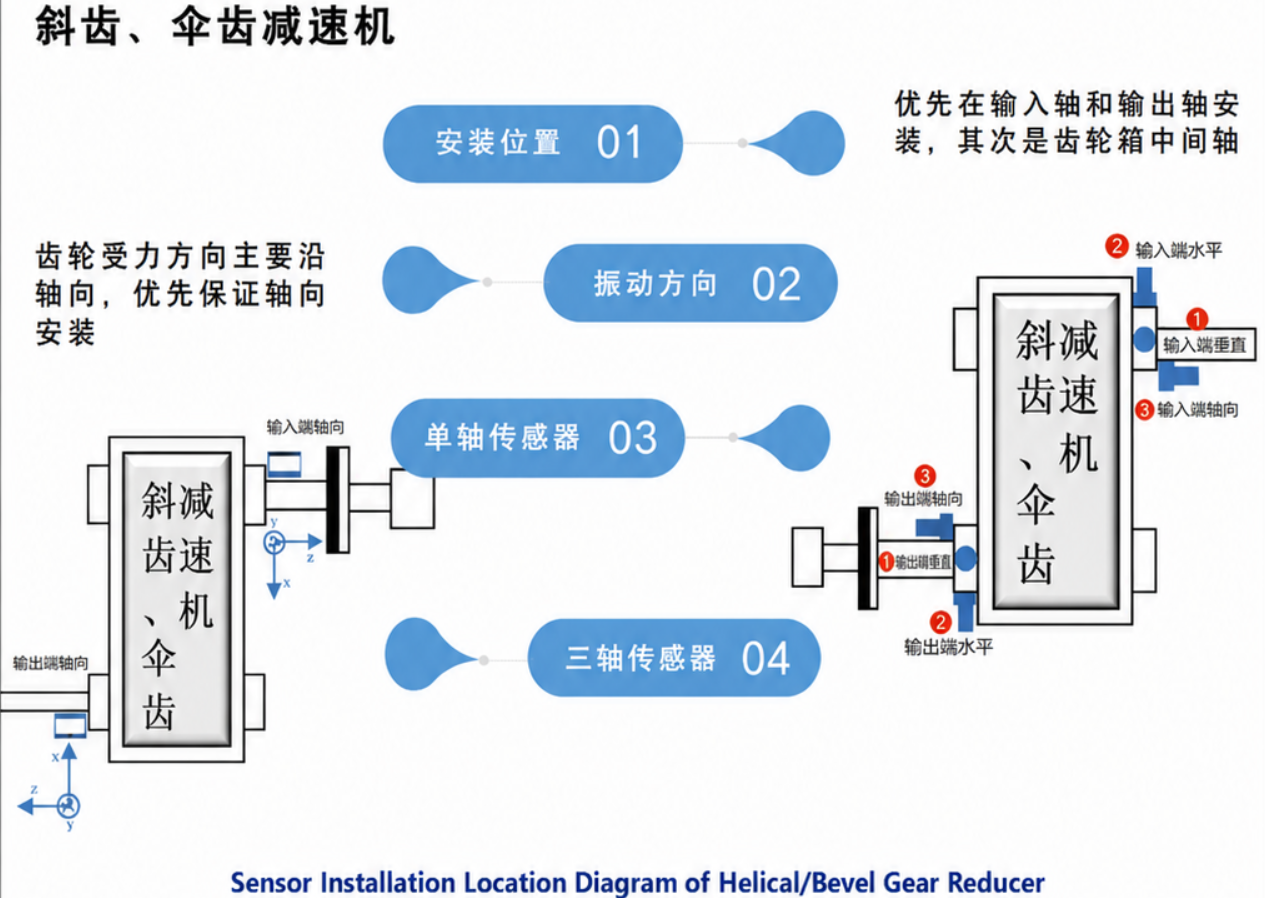

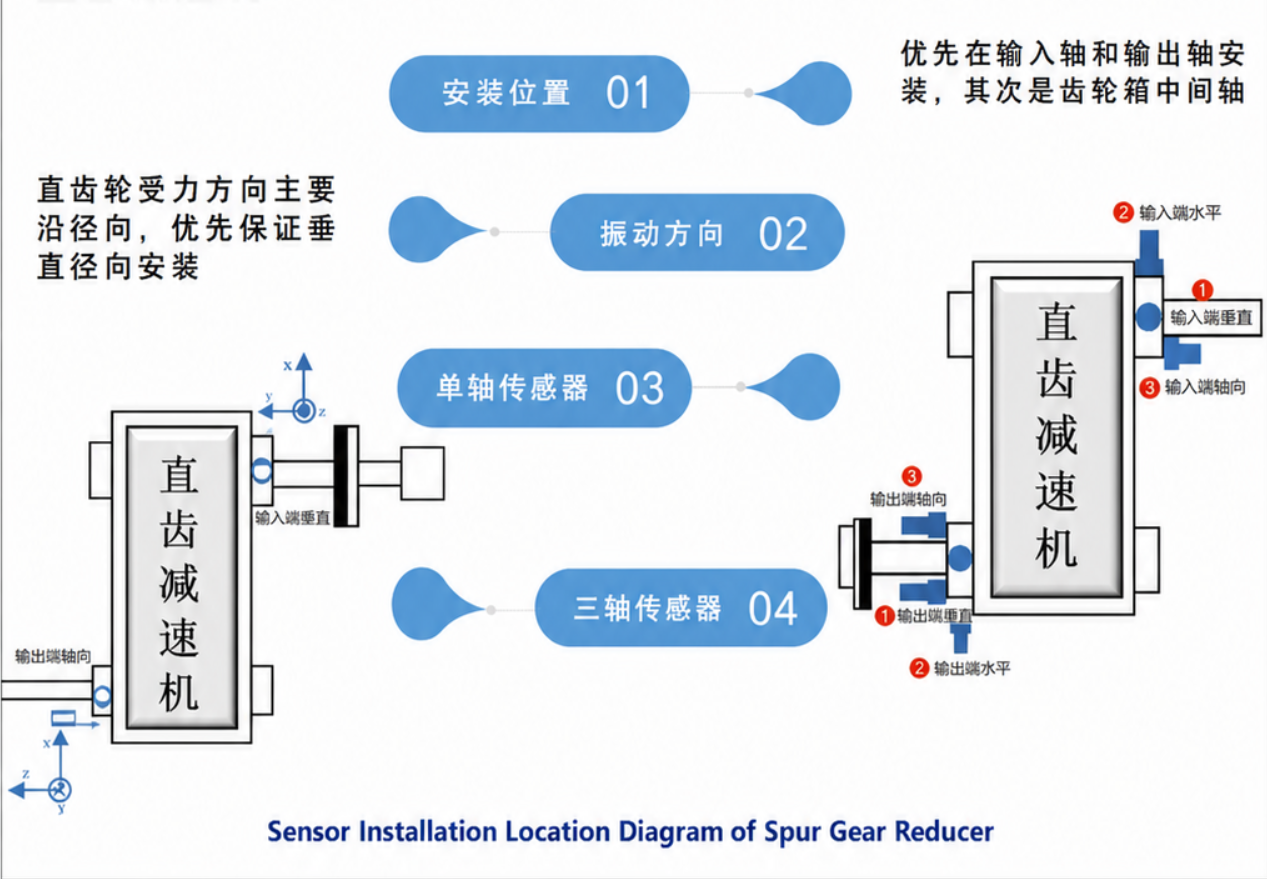

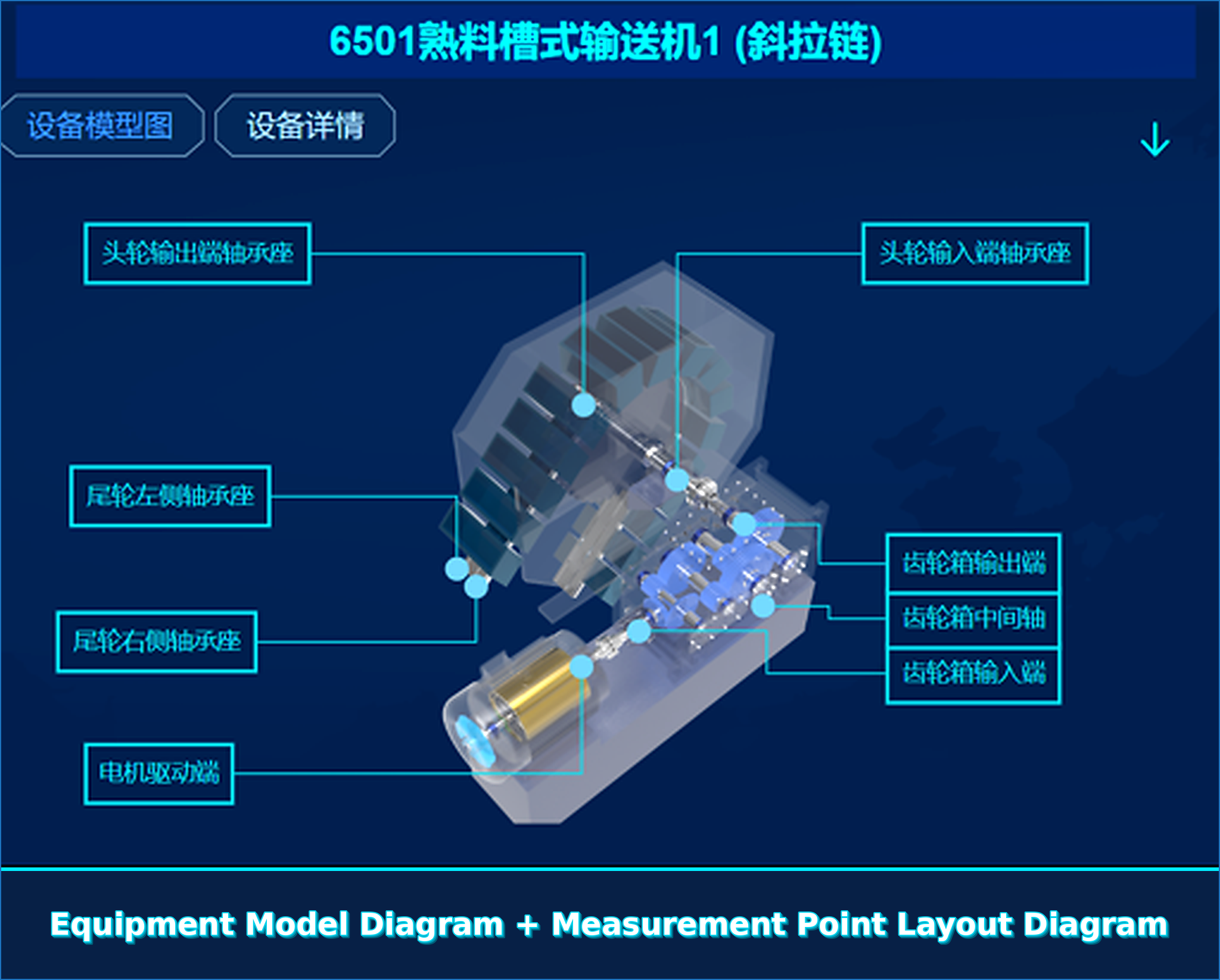

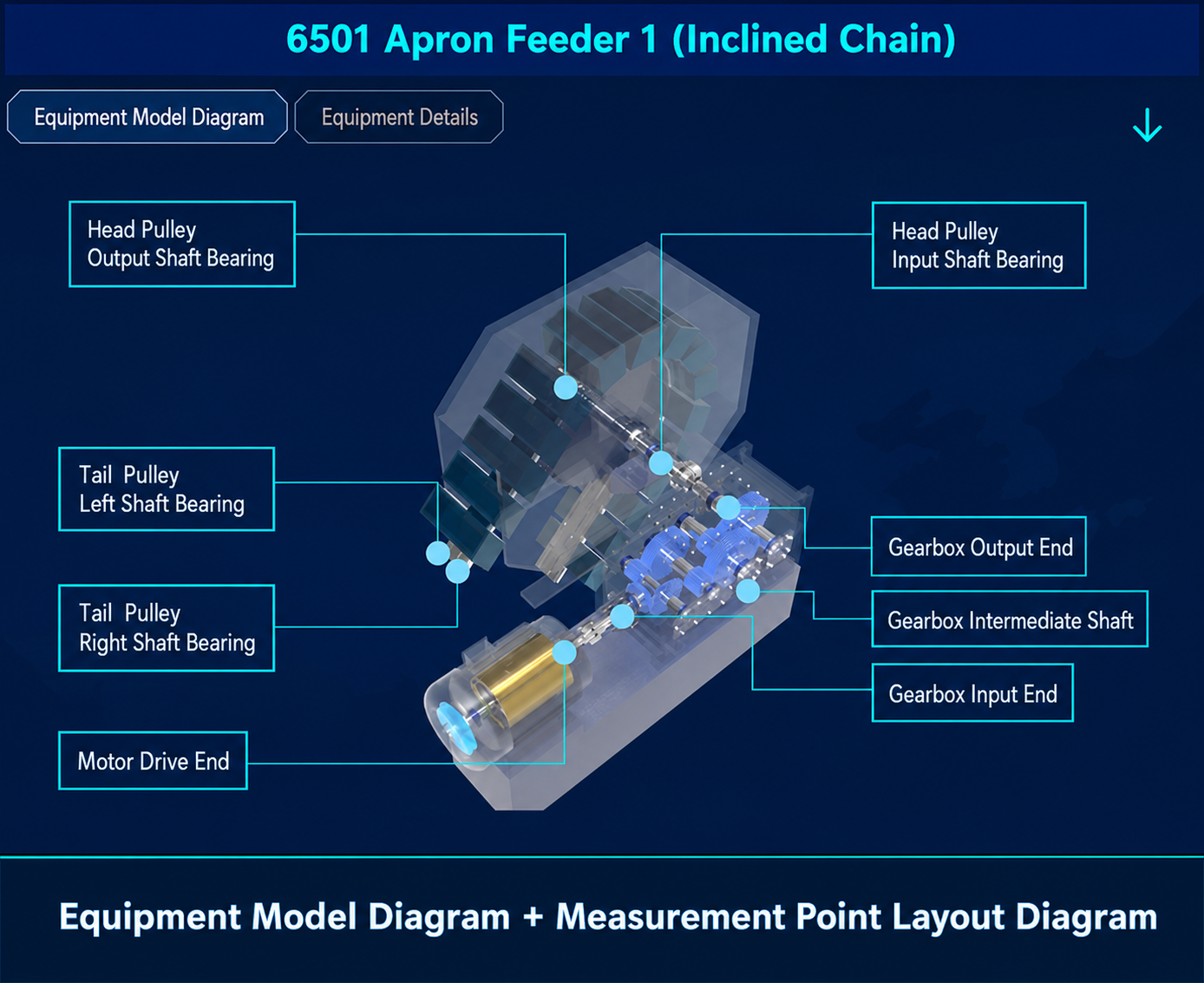

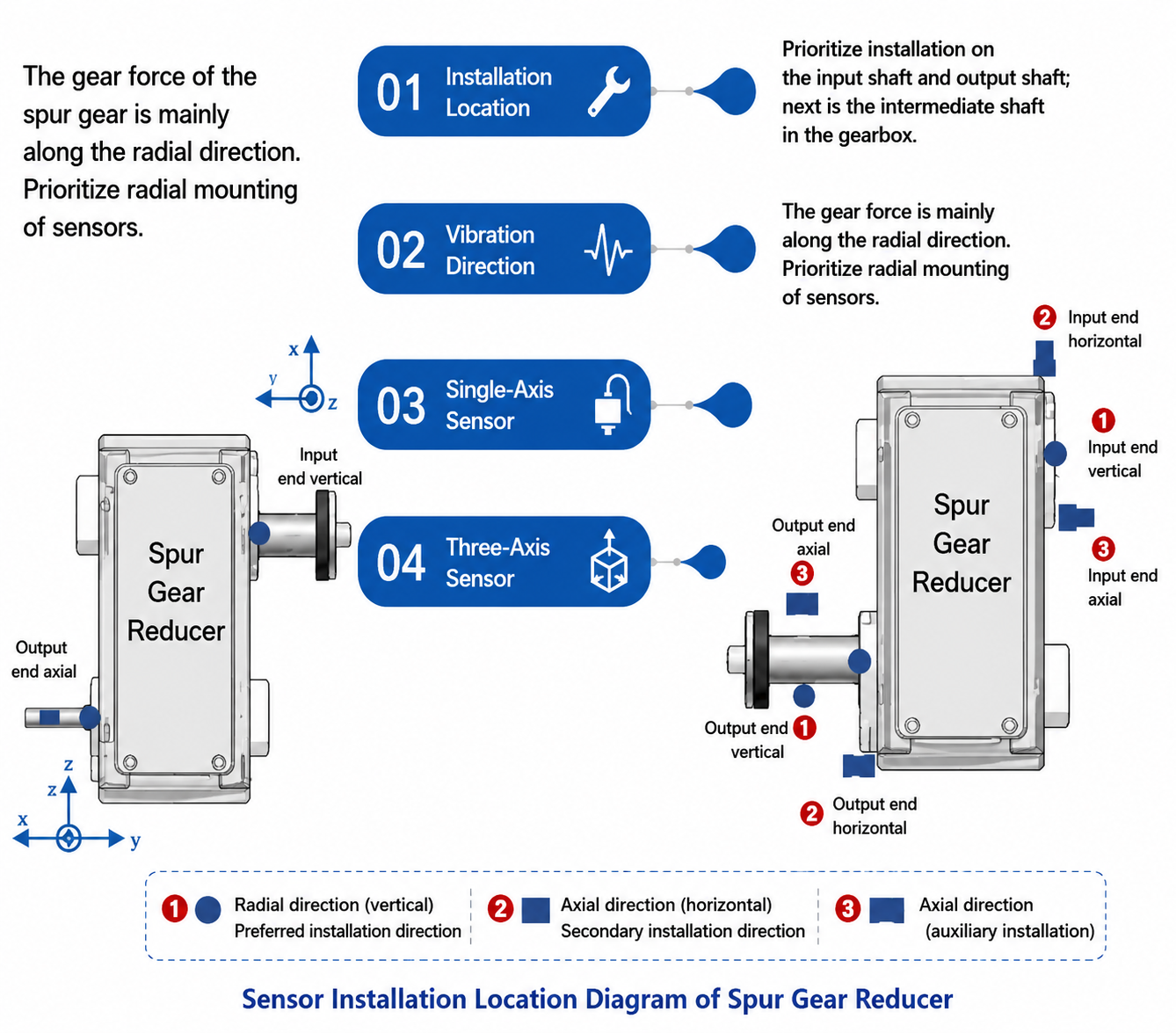

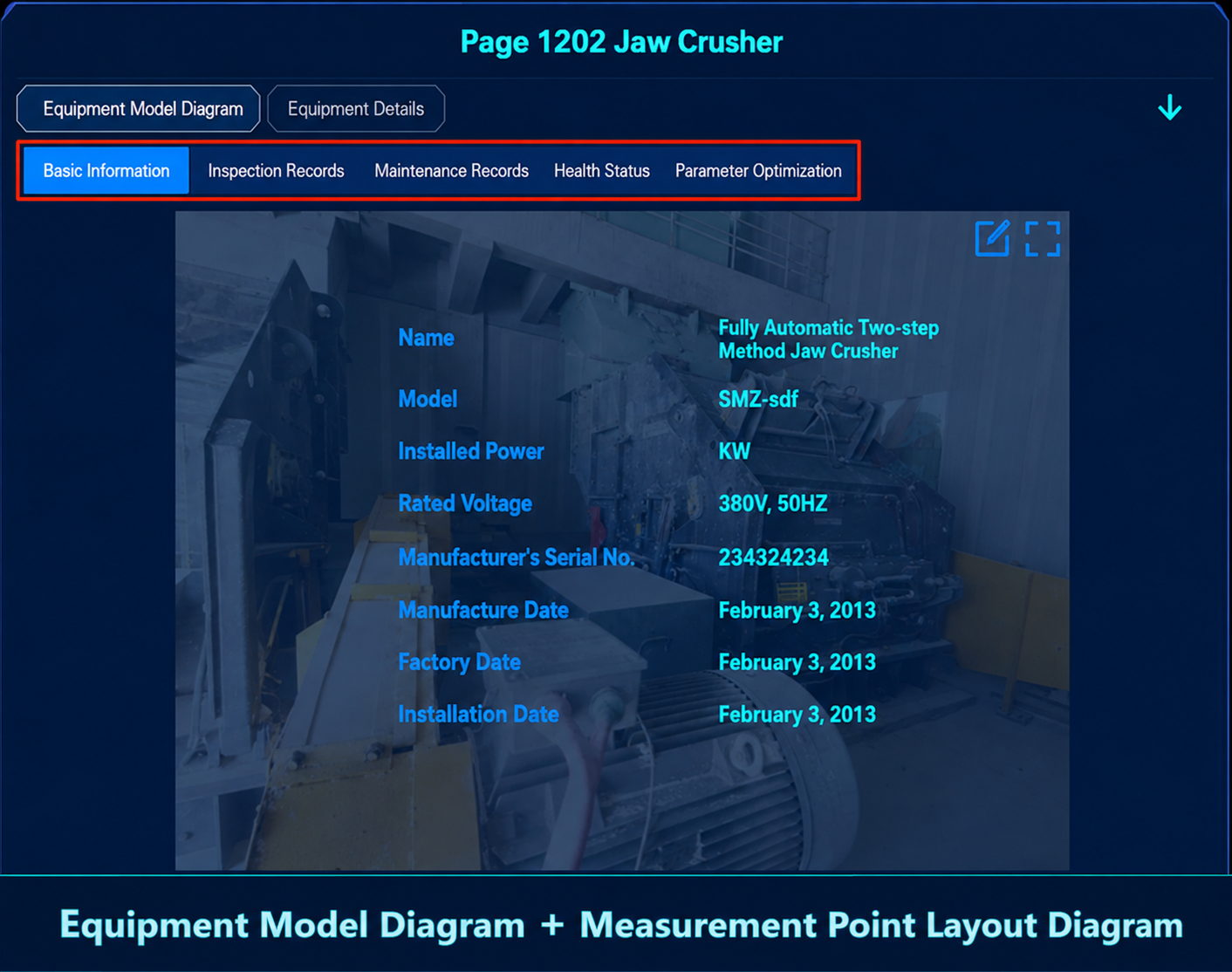

Sensor Mounting & Measurement Points
Typical sensor mounting positions for different gearbox structures. Final installation depends on gearbox type, operating environment, and diagnostic requirements.
Built for key reducers in overseas small and medium factories
GEARiQ focuses on sites with 3-20 critical gearboxes where every stoppage matters.
Food & Beverage
Packaging lines, conveyors, filling equipment, and washdown-area drive systems.
Packaging & Printing
Continuous lines where gearbox vibration, noise, or temperature rise can signal risk.
Automation Lines
Servo-driven stations that need compact, accurate, and predictable transmission units.
Small Robot Integrators
Cost-sensitive projects that need practical alternatives without losing service support.
Selection Guide
Match torque, ratio, and mounting interface before replacement
Correct selection reduces installation risk and helps ensure the replacement gearbox can be installed with minimal mechanical changes.
Custom Retrofit Service
We can support old imported gearbox replacement and OEM batch customization for machine builders.
Non-standard Modification
Non-standard shafts and flanges can be reviewed and modified for specific installation requirements.
Old Imported Unit Replacement
One-to-one replacement for obsolete or hard-to-find imported gearboxes, including Lenze, Bonfiglioli, Sumitomo, SEW, Neugart, APEX, and similar models.
OEM Batch Customization
Batch customization for machine builders, including tailored lubricants, connectors, paint colors, and mounting details.
